1586768-8 | AMP

Pin header, 8 pole, pitch 4.19 mm, straight, white, 1586768-8

Order No.: 35P5431
EAN: 4099889938562
MPN:
1586768-8
Series: VAL-U-LOK

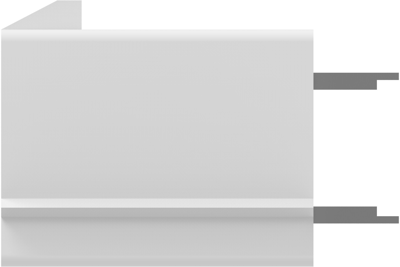

1586768-8 AMP PCB Connection Systems Image 1

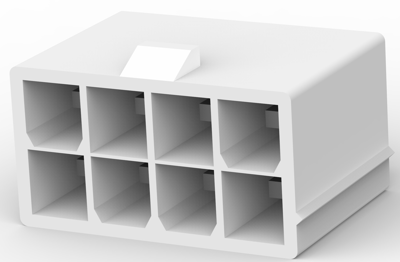

1586768-8 AMP PCB Connection Systems Image 2

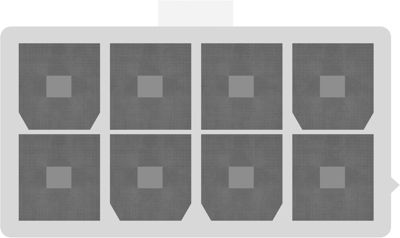

1586768-8 AMP PCB Connection Systems Image 3

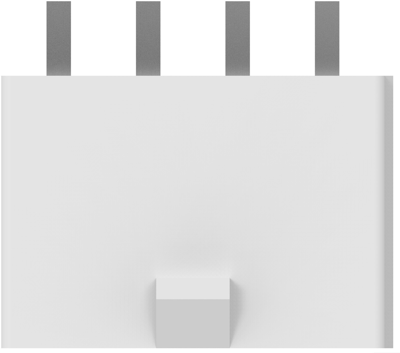

1586768-8 AMP PCB Connection Systems Image 4

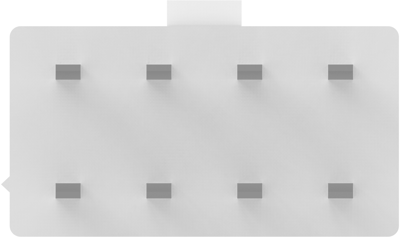

1586768-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0115 € *
Available in 5 Days: 2,803 pcs. - if ordered today
Total Price:
1.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.0115 €

PCB Connection System, 1586768-8, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Polyamide
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 9 A
  • Centerline (Pitch): 4.19 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Version pin header
Contact type pin
Pin number 8 pole
Grid 4.19 mm
Connection PCB connection
Orientation straight
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 150 V
Rated current 9 A
Additional parts equipped
Number of rows 2
Breakable No
Colour white
Logistics
Country of origin CN
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
