1586585-6 | AMP

Pin header, 6 pole, pitch 4.2 mm, straight, natural, 1586585-6

Order No.: 35P5417
EAN: 4099889938425
MPN:
1586585-6

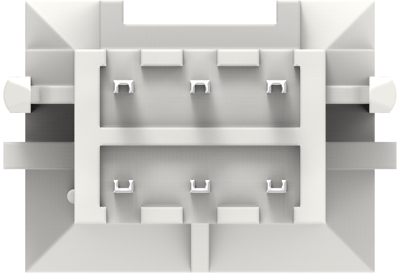

1586585-6 AMP PCB Connection Systems Image 1

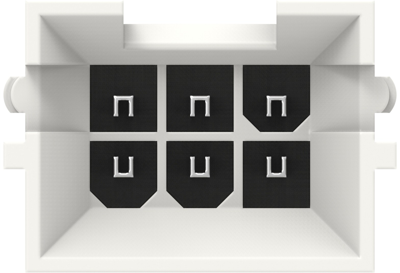

1586585-6 AMP PCB Connection Systems Image 2

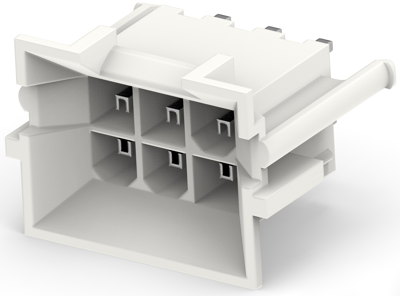

1586585-6 AMP PCB Connection Systems Image 3

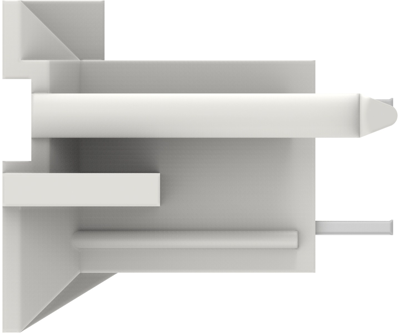

1586585-6 AMP PCB Connection Systems Image 4
1586585-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.8092 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
2,039.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
2520 pcs.
0.8092 €

PCB Connection System, 1586585-6, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 6
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 9 A
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline, Matrix
Technical specifications
Version pin header
Contact type pin
Pin number 6 pole
Grid 4.2 mm
Connection PCB connection
Orientation straight
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 150 V
Rated current 9 A
Additional parts equipped
Number of rows 2
Breakable No
Colour natural
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
