1586106-3 | AMP

Socket header, 3 pole, pitch 4.2 mm, straight, white, 1586106-3

Order No.: 35P5522
EAN: 4099889939361
MPN:
1586106-3
Series: VAL-U-LOK

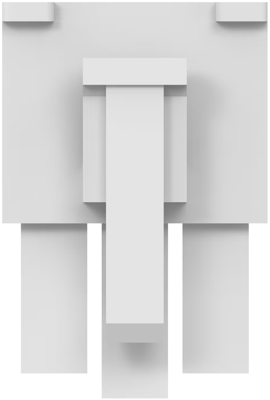

1586106-3 AMP PCB Connection Systems Image 1

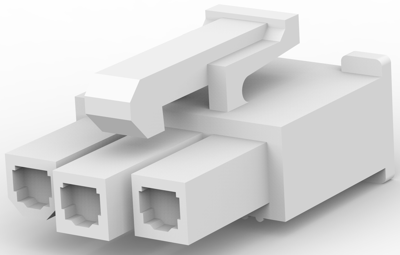

1586106-3 AMP PCB Connection Systems Image 2

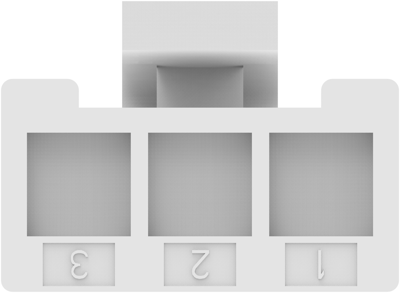

1586106-3 AMP PCB Connection Systems Image 3

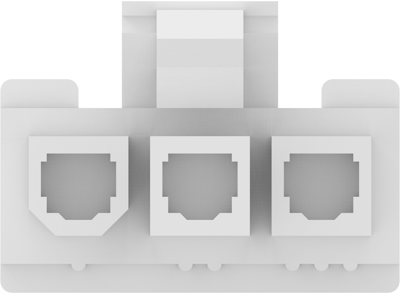

1586106-3 AMP PCB Connection Systems Image 4

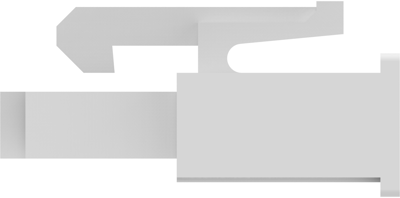

1586106-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
0.48 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4760 €
10 pcs.
0.4165 €
50 pcs.
0.3689 €
100 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1586106-3, AMP

Wire-to-Wire, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 66
  • Housing Color: white
  • Number of positions: 3
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Number of rows 1
Rated voltage 600 V
Contact type socket
Type of locking Yes
Connection crimp connection
Pin number 3 pole
Grid 4.2 mm
Orientation straight
Additional parts unequipped
Colour white
Version socket header
Logistics
Country of origin RO
Customs tariff number 85472000
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
