1586043-2 | AMP

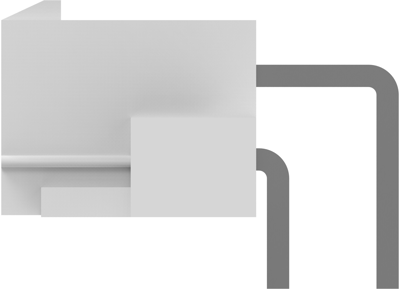

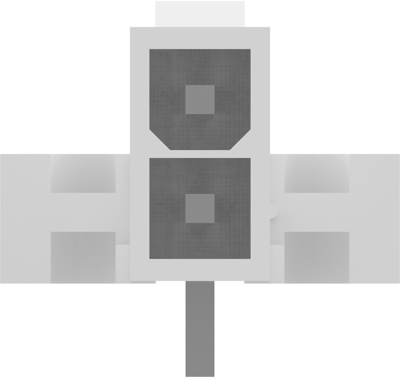

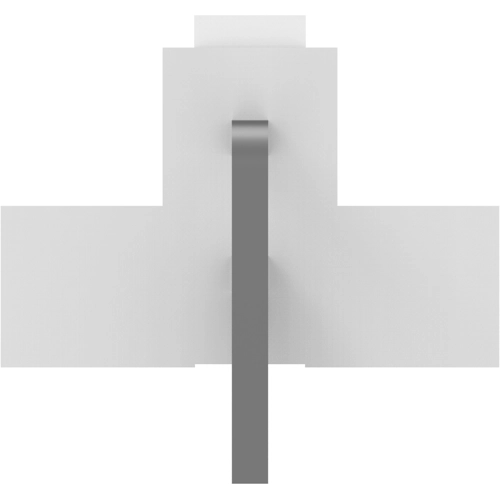

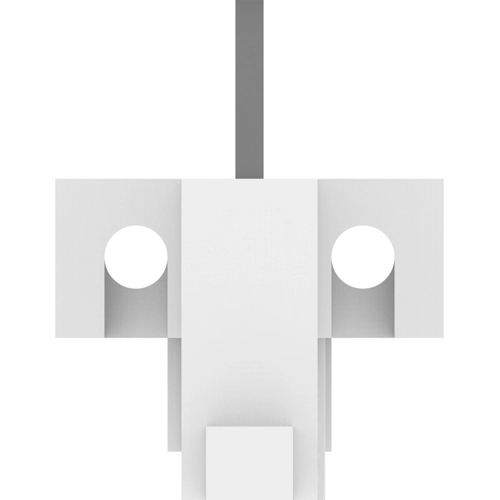

Pin header, 2 pole, pitch 4.2 mm, angled, natural, 1586043-2
Unit Price (€ / pc.)
1.1424 € *
Available: 240 pcs.
Available in 5 Days: 2,455 pcs. - if ordered today
Total Price:
1.14 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1424 €
10 pcs.
1.0591 €
25 pcs.
0.9877 €
50 pcs.
0.9044 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable connectors, 2- to 24-pole, 4.2 mm grid, type TE Connectivity/AMP VAL-U-LOK.
4.2 mm grid, single- and dual-row; Housing: Nylon, flame retardant to UL 94 V-2. Contacts: tinned brass. Rated voltage: 600 VAC. Rated current: max. 9.0 A per cable. Insulation resistance: min. 1000 Mohm. Insertion force (per contact): 6.9 N. Certifications: UL, CSA.
PCB sockets, dual-row, angled, with mounting strap, type ..-1586043.
Technical attributes (type, number of poles, dimensions A/B): 0-1586043-2, 2-pole, A 5.4, B 9.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4.2 mm | |
| Contact type | pin | |
| Additional parts | equipped | |
| Colour | natural | |
| Rated current | 9 A | |
| Number of rows | 2 | |
| Connection | solder pin | |
| Pin number | 2 pole | |
| Orientation | angled | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | pin header | |
| Type of locking | Yes | |
| Rated voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
