1586027-4 | AMP

Socket header, 4 pole, pitch 4.2 mm, straight, natural, 1586027-4

Order No.: 35P5542
EAN: 4099889939538
MPN:
1586027-4
Series: VAL-U-LOK

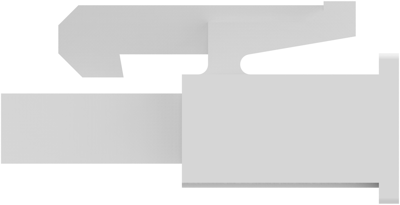

1586027-4 AMP PCB Connection Systems Image 1

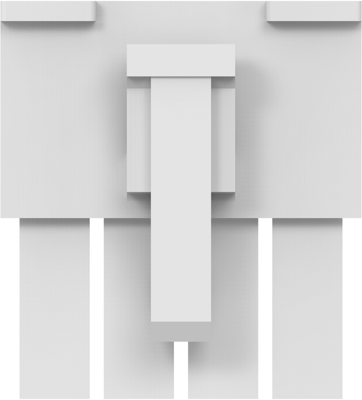

1586027-4 AMP PCB Connection Systems Image 2

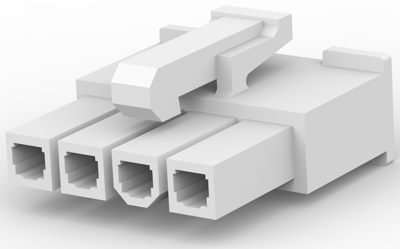

1586027-4 AMP PCB Connection Systems Image 3

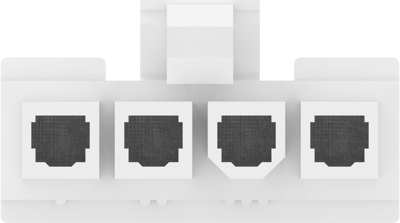

1586027-4 AMP PCB Connection Systems Image 4

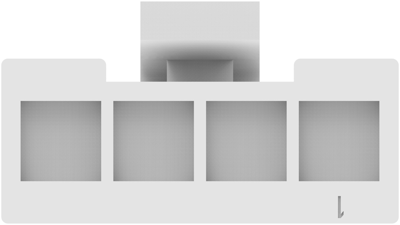

1586027-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2237 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1,789.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
8000 pcs.
0.2237 €

PCB Connection System, 1586027-4, AMP

Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Female
  • Housing Material: Nylon 66
  • Housing Color: natural
  • Number of positions: 4
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
Grid 4.2 mm
Pin number 4 pole
Version socket header
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 600 V
Number of rows 1
Logistics
Country of origin BE
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
