1586022-5 | AMP

Plug housing, 5 pole, pitch 4.2 mm, straight, white, 1586022-5

Order No.: 35P5546
EAN: 4099889939552
MPN:
1586022-5

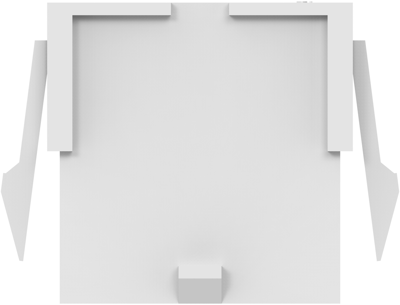

1586022-5 AMP PCB Connection Systems Image 1

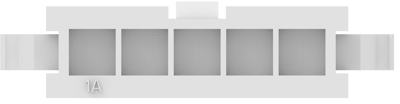

1586022-5 AMP PCB Connection Systems Image 2

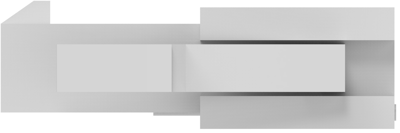

1586022-5 AMP PCB Connection Systems Image 3

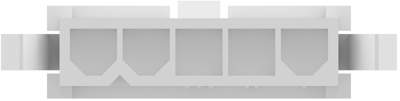

1586022-5 AMP PCB Connection Systems Image 4

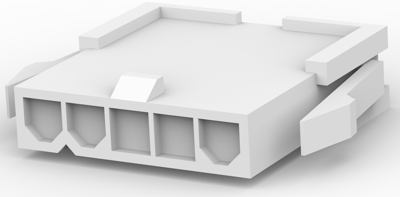

1586022-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5593 € *
Available in 5 Days: 3,499 pcs. - if ordered today
Total Price:
0.56 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5593 €
10 pcs.
0.4998 €
50 pcs.
0.4403 €
100 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1586022-5, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 5 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Nylon 66
  • Housing Color: white
  • Number of positions: 5
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour white
Type of locking Yes
Rated current 9 A
Grid 4.2 mm
Pin number 5 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 600 V
Number of rows 1
Logistics
Country of origin BE
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
