1586018-6 | AMP

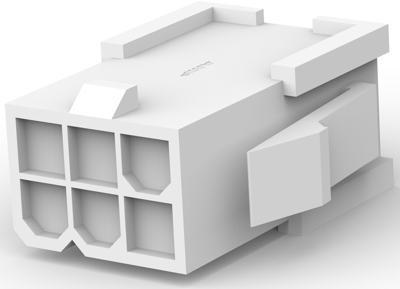

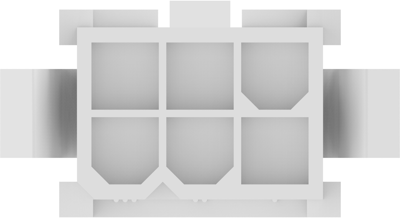

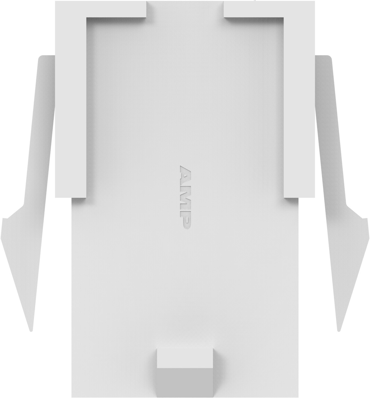

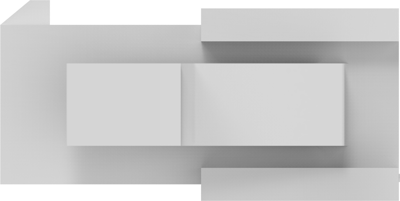

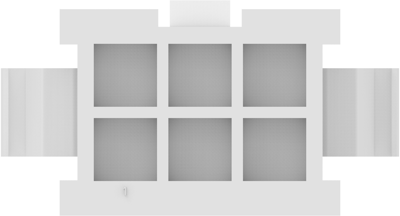

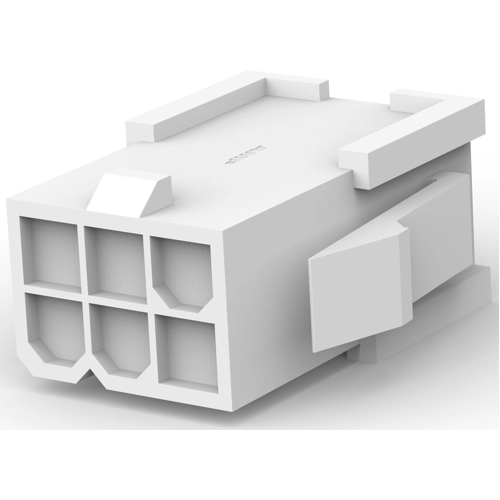

Plug housing, 6 pole, pitch 4.2 mm, straight, white, 1586018-6
Unit Price (€ / pc.)
0.2083 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
20.83 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2083 €
250 pcs.
0.1928 €
500 pcs.
0.1785 €
1000 pcs.
0.1607 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1586018-6, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: white
- Number of positions: 6
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4.2 mm | |
| Contact type | pin | |
| Version | plug housing | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | white | |
| Pin number | 6 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BE |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
