1586017-2 | AMP

Plug housing, 2 pole, pitch 4.2 mm, straight, white, 1586017-2

Order No.: 35P5501
EAN: 4099889939194
MPN:
1586017-2
Series: VAL-U-LOK

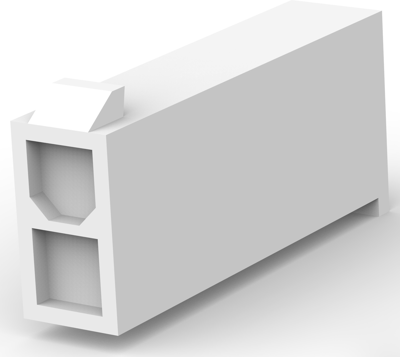

1586017-2 AMP PCB Connection Systems Image 1

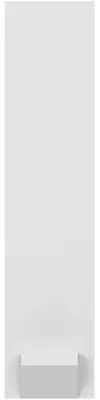

1586017-2 AMP PCB Connection Systems Image 2
1586017-2 AMP PCB Connection Systems Image 3

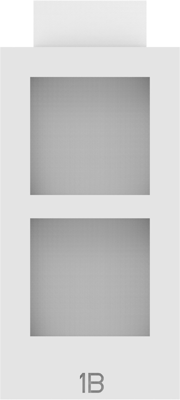

1586017-2 AMP PCB Connection Systems Image 4

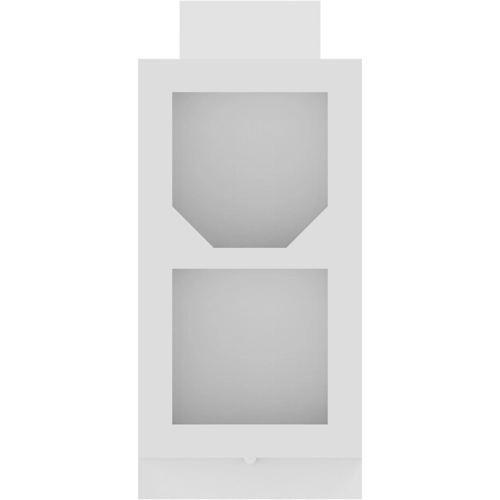

1586017-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2023 € *
Available in 5 Days: 28,282 pcs. - if ordered today
Total Price:
1.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
0.2023 €

PCB Connection System, 1586017-2, AMP

Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: white
  • Number of positions: 2
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour white
Type of locking Yes
Grid 4.2 mm
Pin number 2 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 600 V
Number of rows 2
Logistics
Country of origin BE
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
