1586000-8 | AMP

Plug housing, 8 pole, pitch 4.2 mm, straight, natural, 1586000-8

Order No.: 71F5856
EAN: 4099891010874
MPN:
1586000-8
0-1586000-8
Series: VAL-U-LOK

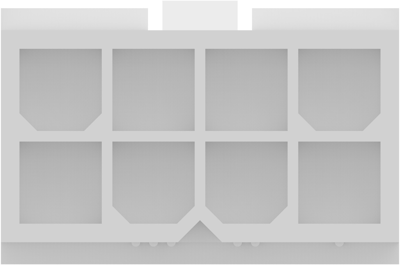

1586000-8 AMP PCB Connection Systems Image 1

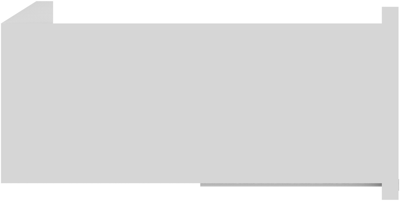

1586000-8 AMP PCB Connection Systems Image 2

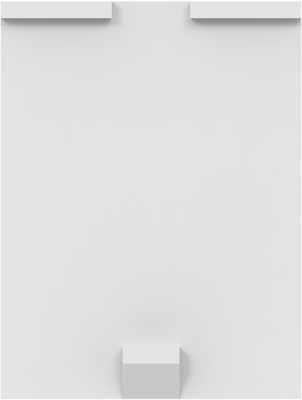

1586000-8 AMP PCB Connection Systems Image 3

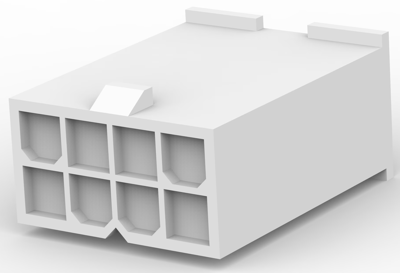

1586000-8 AMP PCB Connection Systems Image 4
1586000-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2713 € *
Available: 371 pcs.
Available in 5 Days: 7,711 pcs. - if ordered today
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2713 €
10 pcs.
0.2511 €
25 pcs.
0.2344 €
50 pcs.
0.2118 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connectors, 2- to 24-pole, 4.2 mm grid, type TE Connectivity/AMP VAL-U-LOK.

4.2 mm grid, single- and dual-row; Housing: Nylon, flame retardant to UL 94 V-2. Contacts: tinned brass. Rated voltage: 600 VAC. Rated current: max. 9.0 A per cable. Insulation resistance: min. 1000 Mohm. Insertion force (per contact): 6.9 N. Certifications: UL, CSA.

Male connector housings, dual-row, bare, type ..-1586000.

Technical attributes (type, number of poles, dimension A): 0-1586000-8, 8-pole, A 18 mm

Technical specifications
Filter Property Value
Grid 4.2 mm
Contact type pin
Version plug housing
Rated current 9 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour natural
Pin number 8 pole
Connection crimp connection
Logistics
Property Value
Country of origin BE
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
