1586000-2 | AMP

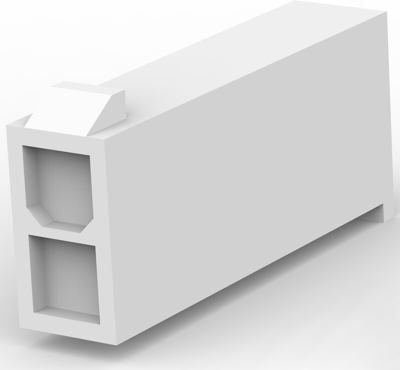

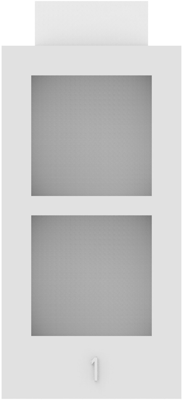

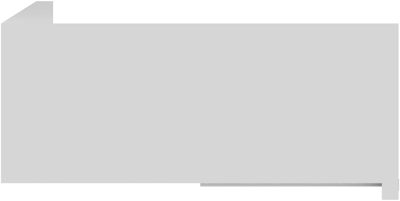

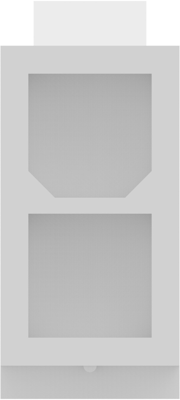

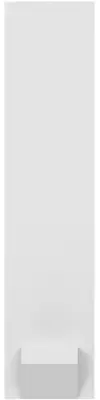

Plug housing, 2 pole, pitch 4.2 mm, straight, natural, 1586000-2
Unit Price (€ / pc.)
0.1714 € *
Available: 2,579 pcs.
Available in 5 Days: 68,222 pcs. - if ordered today
Total Price:
17.14 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1714 €
250 pcs.
0.1583 €
500 pcs.
0.1464 €
1000 pcs.
0.1321 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable connectors, 2- to 24-pole, 4.2 mm grid, type TE Connectivity/AMP VAL-U-LOK.
4.2 mm grid, single- and dual-row; Housing: Nylon, flame retardant to UL 94 V-2. Contacts: tinned brass. Rated voltage: 600 VAC. Rated current: max. 9.0 A per cable. Insulation resistance: min. 1000 Mohm. Insertion force (per contact): 6.9 N. Certifications: UL, CSA.
Male connector housings, dual-row, bare, type ..-1586000.
Technical attributes (type, number of poles, dimension A): 0-1586000-2, 2-pole, A 5.4 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4.2 mm | |
| Contact type | pin | |
| Version | plug housing | |
| Rated current | 9 A | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | natural | |
| Pin number | 2 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BE |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
