1534072-2 | AMP

Socket header, 2 pole, pitch 5 mm, straight, natural, 1534072-2

Order No.: 35P4006
EAN: 4099889932201
MPN:
1534072-2

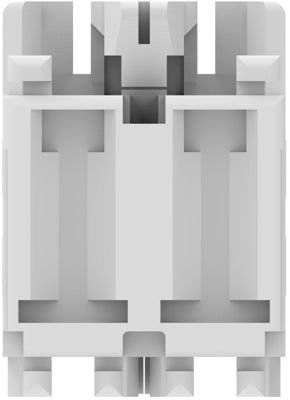

1534072-2 AMP PCB Connection Systems Image 1

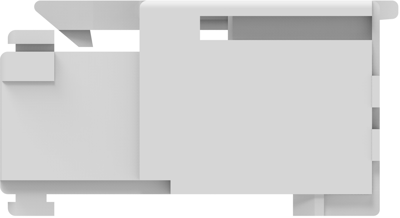

1534072-2 AMP PCB Connection Systems Image 2

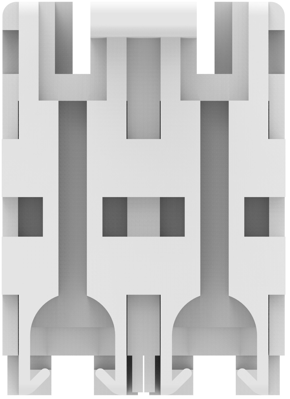

1534072-2 AMP PCB Connection Systems Image 3

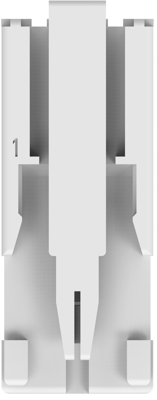

1534072-2 AMP PCB Connection Systems Image 4

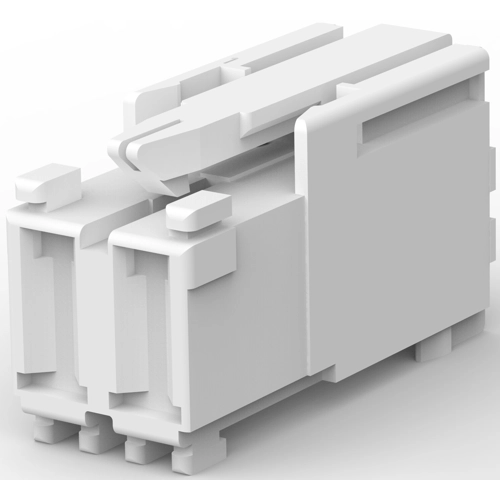

1534072-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Available in 5 Days: 47,350 pcs. - if ordered today
Total Price:
0.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.4165 €

PCB Connection System, 1534072-2, AMP

Wire-to-Board, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: PA 6.6
  • Housing Color: natural
  • Number of positions: 2
  • Operating Temperature Range: -40 – 130 °C [-40 – 266 °F]
  • Rated current: 10 A
  • Centerline (Pitch): 5 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
Rated current 10 A
Grid 5 mm
Pin number 2 pole
Version socket header
Additional parts equipped
Orientation straight
Connection IDC connection
Contact type socket
Rated voltage 150 V
Number of rows 1
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
