1445716-6 | AMP

Plug/socket housing, 1 pole, straight, blue, 1445716-6

Order No.: 37P1817
EAN: 4099889953527
MPN:
1445716-6

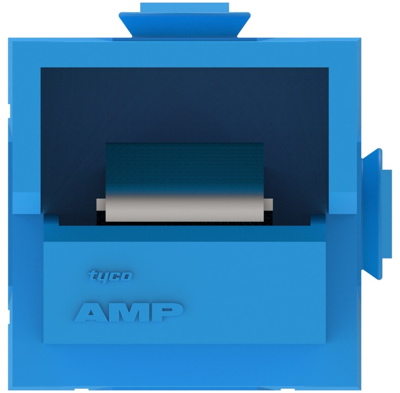

1445716-6 AMP PCB Connection Systems Image 1

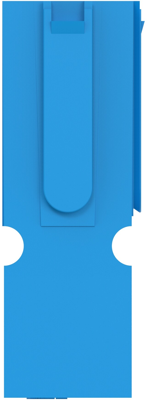

1445716-6 AMP PCB Connection Systems Image 2

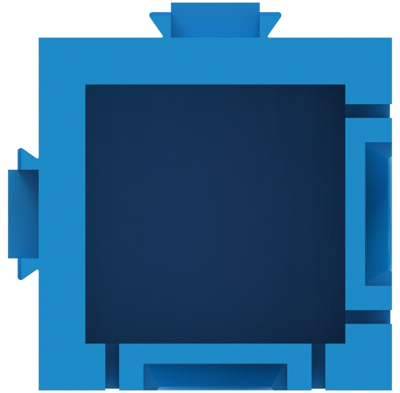

1445716-6 AMP PCB Connection Systems Image 3

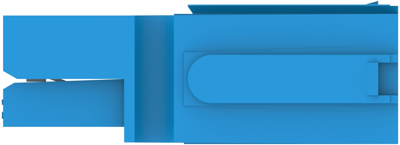

1445716-6 AMP PCB Connection Systems Image 4
1445716-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
6.5450 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5450 €
10 pcs.
6.0809 €
25 pcs.
5.6763 €
50 pcs.
5.1527 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1445716-6, AMP

Wire-to-Wire, Wire & Cable, 1 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female/Male
  • Housing Material: Polycarbonate
  • Housing Color: blue
  • Number of positions: 1
  • Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
  • Rated current: 75 A
  • Sealable: No
Technical specifications
Filter Property Value
Contact type tab
Connection plating silver-plated
contact surface silver-plated
Version plug/socket housing
Rated current 75 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour blue
Pin number 1 pole
Connection crimp connection
Logistics
Property Value
Country of origin TH
Customs tariff number 85369001
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
