1445715-4 | AMP

Plug/socket housing, 1 pole, straight, green, 1445715-4

Order No.: 37P1826
EAN: 4099889953572
MPN:
1445715-4
Series: POWER

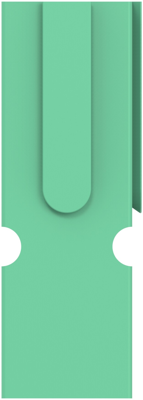

1445715-4 AMP PCB Connection Systems Image 1

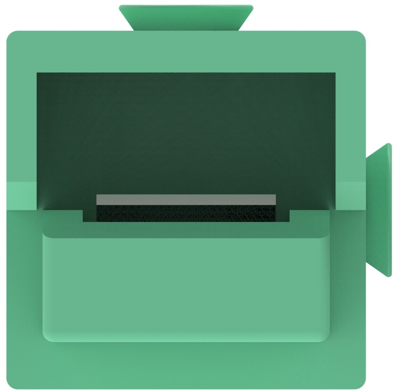

1445715-4 AMP PCB Connection Systems Image 2

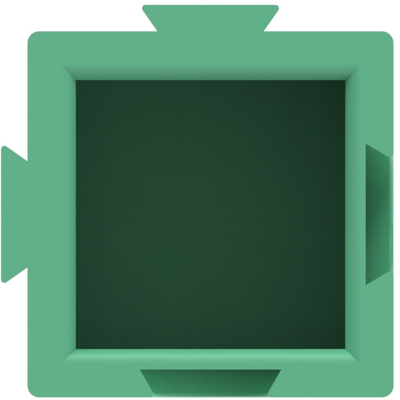

1445715-4 AMP PCB Connection Systems Image 3

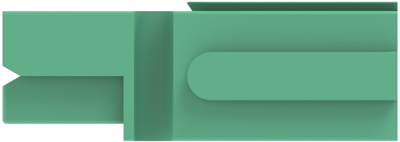

1445715-4 AMP PCB Connection Systems Image 4
1445715-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.7850 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
8.93 € *
Price list
Quantity
Price per unit*
5 pcs.
1.7850 €
10 pcs.
1.6541 €
25 pcs.
1.5351 €
50 pcs.
1.3923 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1445715-4, AMP

Wire-to-Wire, Wire & Cable, 1 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Polycarbonate
  • Housing Color: green
  • Number of positions: 1
  • Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
  • Sealable: No
Technical specifications
Filter Property Value
Contact type tab
Version plug/socket housing
Rated current 75 A
Rated voltage 600 V
Orientation straight
Additional parts unequipped
Number of rows 1
Colour green
Pin number 1 pole
Connection crimp connection
Logistics
Property Value
Country of origin TH
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
