1445049-9 | AMP

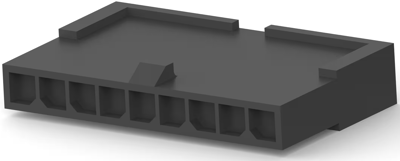

Plug housing, 9 pole, pitch 3 mm, straight, black, 1445049-9
Unit Price (€ / pc.)
0.2297 € *
Standard delivery time from the manufacturer is: 20 Weeks
PCB Connection System, 1445049-9, AMP
Wire-to-Wire, Wire & Cable, 9 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon 66/6
- Housing Color: black
- Number of positions: 9
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 3 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 250 V | |
| Orientation | straight | |
| Pin number | 9 pole | |
| Version | plug housing | |
| Colour | black | |
| Grid | 3 mm | |
| Rated current | 5 A | |
| Type of locking | Yes | |
| Contact type | pin | |
| Number of rows | 1 | |
| Connection | crimp connection | |
| Additional parts | unequipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
