1445048-4 | AMP

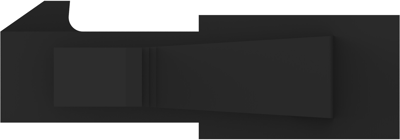

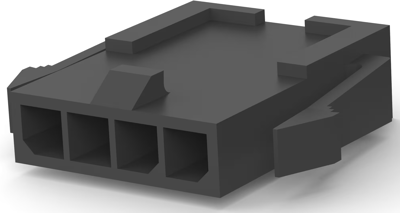

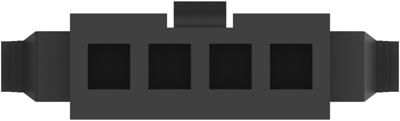

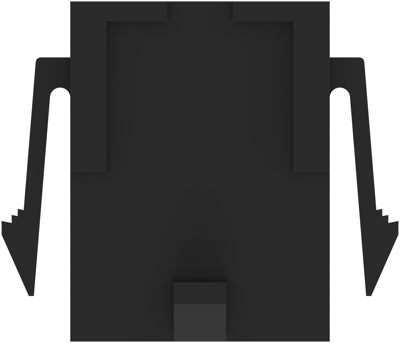

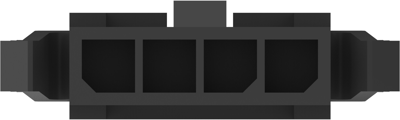

Plug housing, 4 pole, pitch 3 mm, straight, black, 1445048-4
Unit Price (€ / pc.)
0.2773 € *
Standard delivery time from the manufacturer is: 20 Weeks
Cable connectors, 2- to 24-pole, 3.0 mm grid, type TE Connectivity/AMP Micro Mate-N-Lok.
3.0 mm grid, single- and dual-row; Rated voltage: 250 V. Rated current: max. 5.0 A. Insulation resistance: min. 1000 Mohm. Contact resistance: max. 20 mohm. Insertion force (pro contact): 6.67 N. Operating temperatures: –40 to +105 °C. Certifications: UL, CSA.
Male connector housings, single-row, bare, front panel mount, type 0-144.
Made of Nylon, flame retardant to UL 94 V-0.
Technical attributes (type, number of poles, length): 0-1445048-4, 4-pole, L 12.85 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Number of rows | 1 | |
| Version | plug housing | |
| Grid | 3 mm | |
| Rated voltage | 250 V | |
| Colour | black | |
| Rated current | 5 A | |
| Type of locking | Yes | |
| Connection | crimp connection | |
| Contact type | pin | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
