1376477-4 | AMP

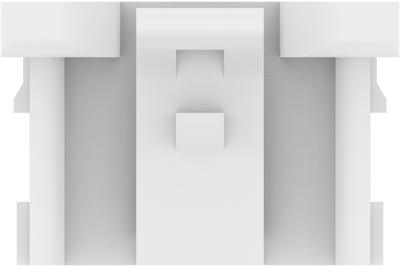

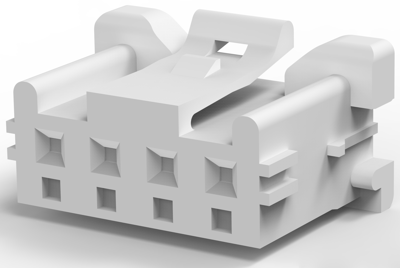

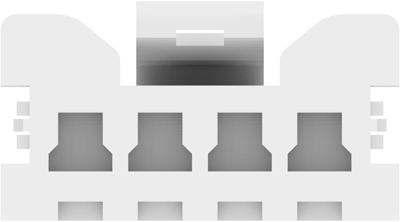

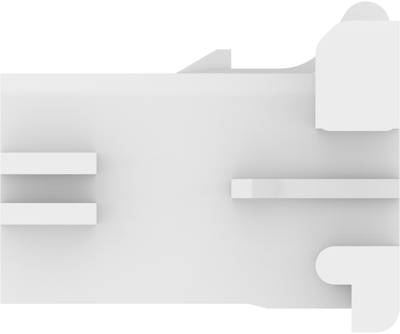

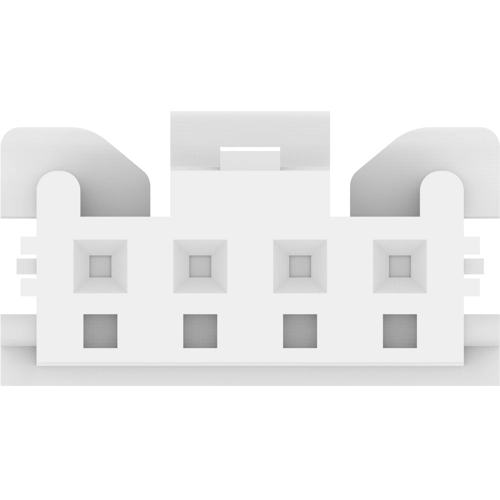

Plug housing, 4 pole, pitch 2.5 mm, straight, natural, 1376477-4
Order No.: 35P4356
EAN: 4099889933680
MPN:
1376477-4
Unit Price (€ / pc.)
0.3046 € *
Available in 5 Days: 70,794 pcs. - if ordered today
Total Price:
1.52 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3046 €
10 pcs.
0.2820 €
25 pcs.
0.2630 €
50 pcs.
0.2380 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1376477-4, AMP
Wire-to-Board, Printed Circuit Board, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: Nylon 66 GF
- Housing Color: natural
- Number of positions: 4
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 2.5 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Contact type | socket | |
| Version | plug housing | |
| Rated current | 2.5 A | |
| Rated voltage | 150 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 4 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
