1376393-1 | AMP

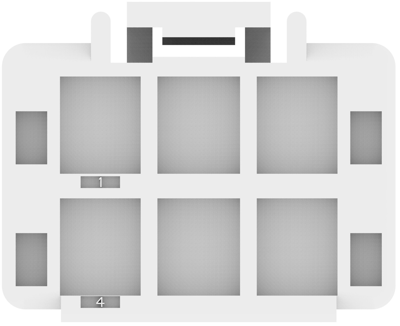

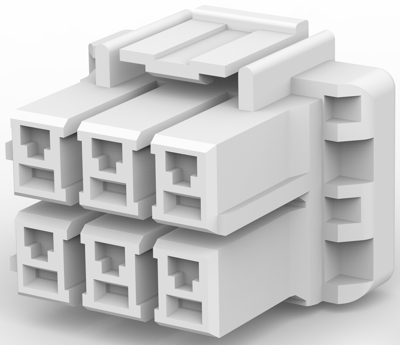

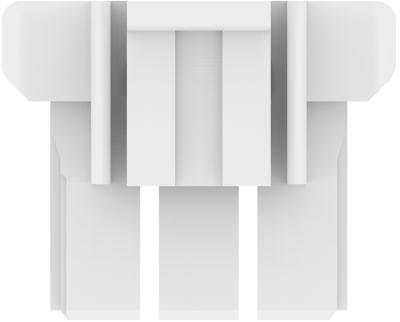

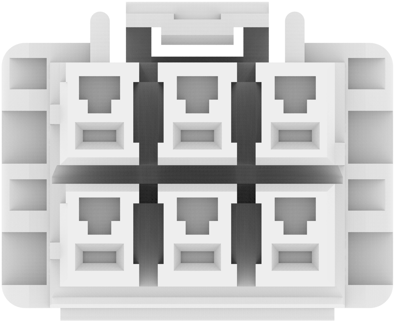

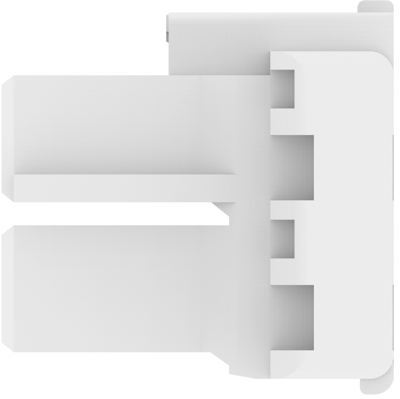

Plug housing, 6 pole, pitch 5 mm, straight, natural, 1376393-1
Order No.: 35P3779
EAN: 4099889931433
MPN:
1376393-1
Unit Price (€ / pc.)
0.1678 € *
Standard delivery time from the manufacturer is: 16 Weeks
PCB Connection System, 1376393-1, AMP
Wire-to-Board, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Nylon 6/6 GF
- Housing Color: natural
- Number of positions: 6
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 10 A
- Centerline (Pitch): 5 mm
- Row-to-Row Spacing: 6.2 mm [0.244 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Colour | natural | |
| Type of locking | Yes | |
| Rated current | 10 A | |
| Grid | 5 mm | |
| Pin number | 6 pole | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 150 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
