1376385-1 | AMP

Pin header, 4 pole, pitch 5 mm, straight, natural, 1376385-1

Order No.: 35P3770
EAN: 4099889931358
MPN:
1376385-1

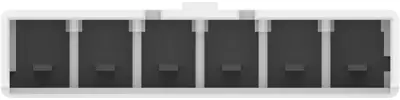

1376385-1 AMP PCB Connection Systems Image 1

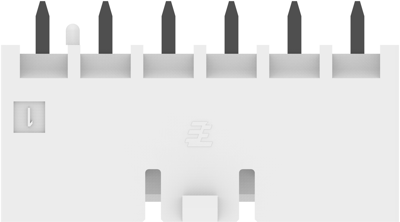

1376385-1 AMP PCB Connection Systems Image 2

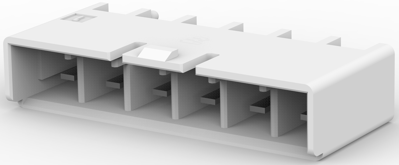

1376385-1 AMP PCB Connection Systems Image 3

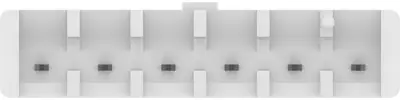

1376385-1 AMP PCB Connection Systems Image 4

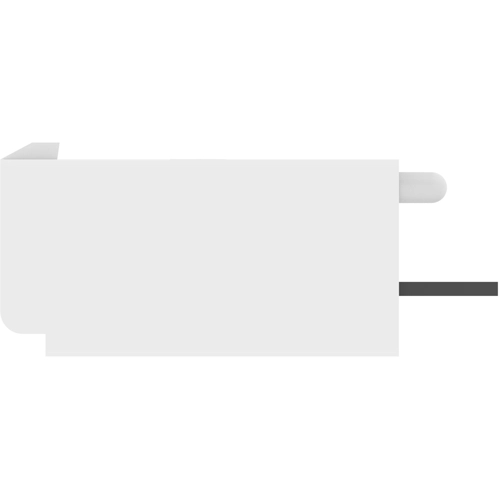

1376385-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.3562 € *
Available in 5 Days: 600 pcs. - if ordered today
Total Price:
11.78 € *
Price list
Quantity
Price per unit*
5 pcs.
2.3562 €
10 pcs.
2.1777 €
25 pcs.
2.0349 €
50 pcs.
1.8445 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1376385-1, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 4 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 6/6 GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 4
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Rated current: 10 A
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Version pin header
Contact type pin
Pin number 4 pole
Grid 5 mm
Connection press-fit
Orientation straight
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 150 V
Rated current 10 A
Additional parts equipped
Number of rows 1
Breakable No
Colour natural
Logistics
Property Value
Country of origin TH
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
