1376382-5 | AMP

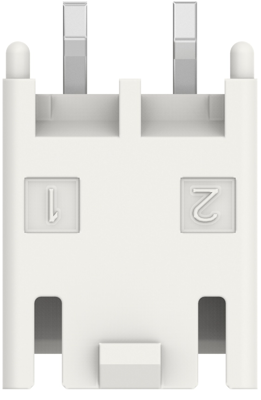

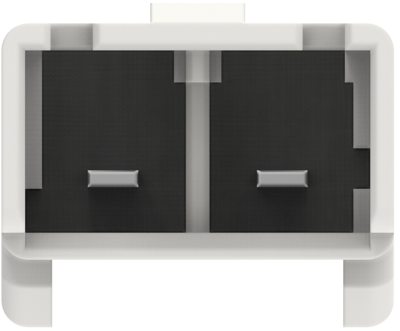

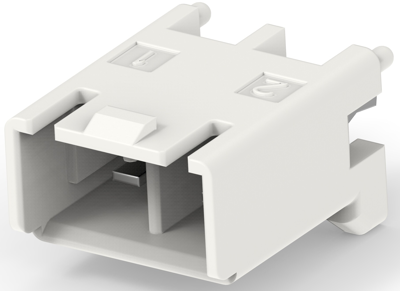

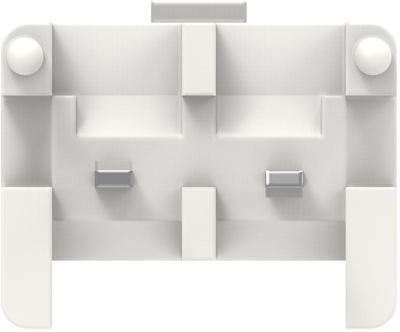

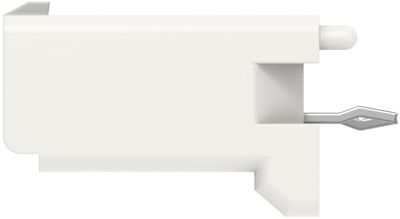

Socket header, 2 pole, pitch 5 mm, straight, natural, 1376382-5
Unit Price (€ / pc.)
0.2202 € *
Available in 5 Days: 2,190 pcs. - if ordered today
Power key connector, 1376382-5, AMP
The 1376382-5 is built to optimize contact seating and proper mating to the PCB header, with design features that permit the release of bubbles created by the PCB potting process. This product uses housing lances to prevent tangling of wired contacts, and consists of plug housings for wire and compact wire-to-board PCB header assemblies.
Features
- Locking levers are surrounded by walls, which protect levers and prevent tangling with wires
- Power circuit connector with 5.0 mm contact centerline
Applications
- Household appliances
- Gas appliances
- Power cord application
- Control boards across various industries
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Grid | 5 mm | |
| Orientation | straight | |
| Connection | press-fit | |
| Contact type | tab | |
| Rated current | 10 A | |
| Additional parts | equipped | |
| Version | socket header | |
| Pin number | 2 pole | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | natural | |
| Rated voltage | 300 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
