1376382-1 | AMP

Pin header, 2 pole, pitch 5 mm, straight, natural, 1376382-1

Order No.: 35P3766
EAN: 4099889931310
MPN:
1376382-1

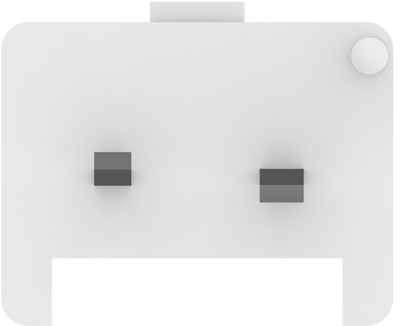

1376382-1 AMP PCB Connection Systems Image 1

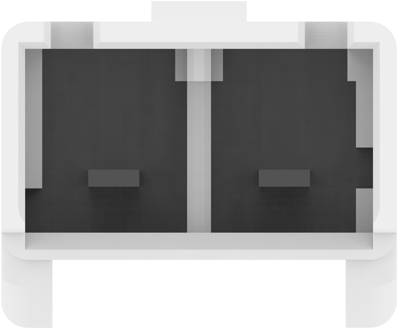

1376382-1 AMP PCB Connection Systems Image 2

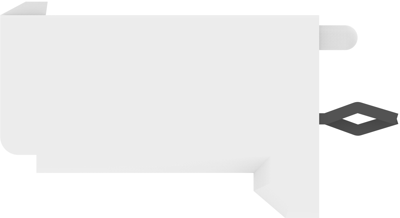

1376382-1 AMP PCB Connection Systems Image 3

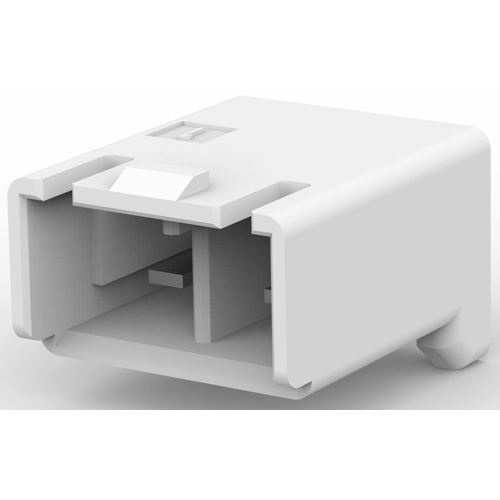

1376382-1 AMP PCB Connection Systems Image 4

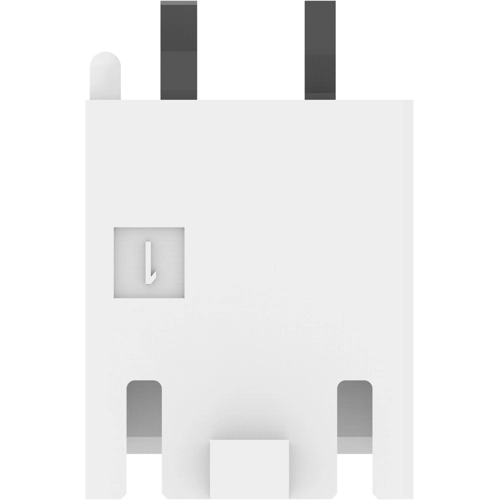

1376382-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
761.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
0.3808 €

PCB Connection System, 1376382-1, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 6/6 GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 10 A
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version pin header
Contact type pin
Pin number 2 pole
Grid 5 mm
Connection press-fit
Orientation straight
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 150 V
Rated current 10 A
Additional parts equipped
Number of rows 1
Breakable No
Colour natural
Logistics
Country of origin TH
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
