1376009-1 | AMP

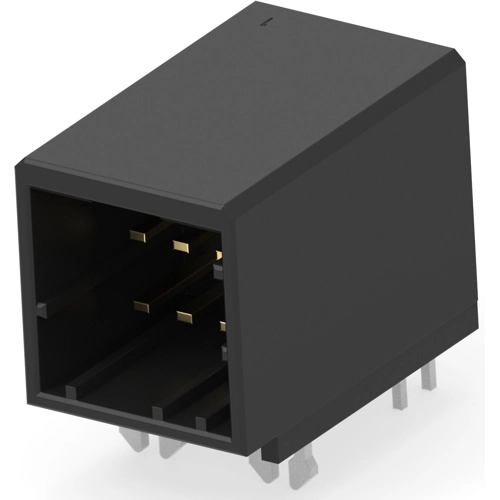

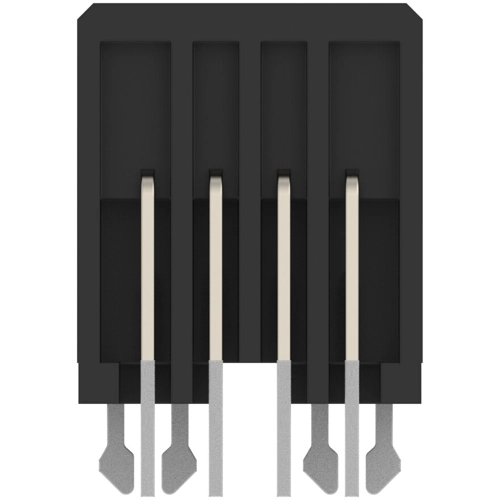

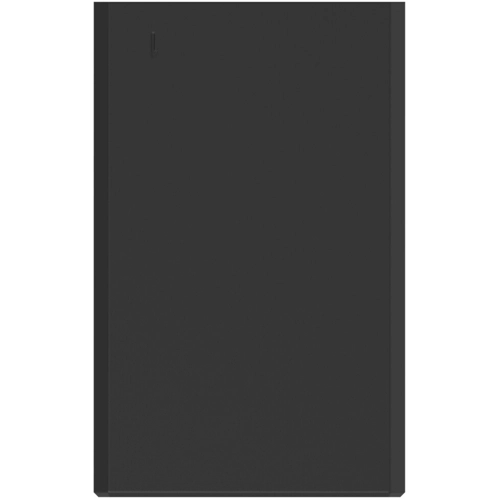

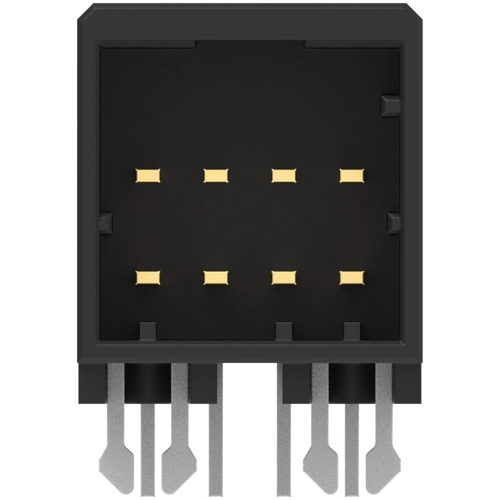

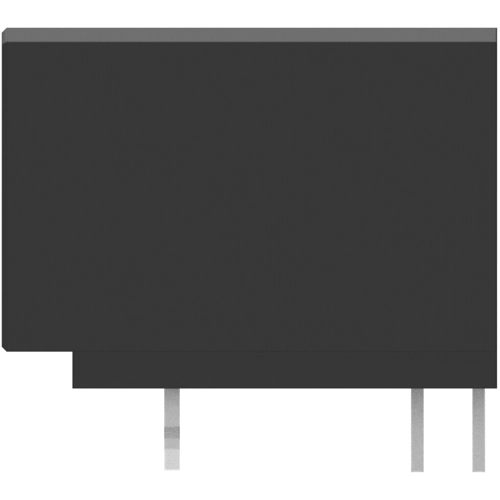

Pin header, 8 pole, pitch 2.5 mm, angled, black, 1376009-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.8437 € *
Available in 12 Days: 1,369 pcs. - if ordered today
Pin header, 1376009-1, AMP
PCB Mount Header, Horizontal, Wire-to-Board, 8-Positions, 2.5 mm Centerline, Fully Shrouded, Gold (Au).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 8 pole | |
| Grid | 2.5 mm | |
| Connection | PCB connection | |
| Orientation | angled | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 5 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Breakable | No | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
