1241961-3 | AMP

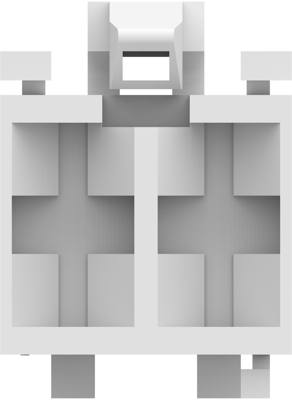

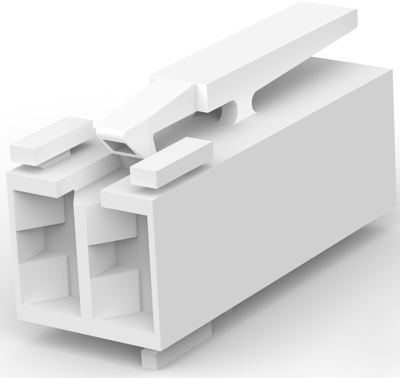

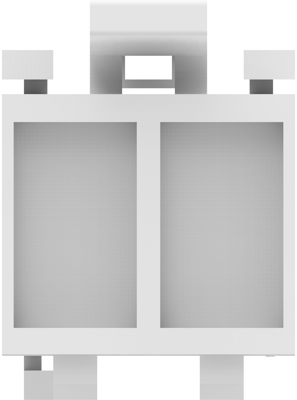

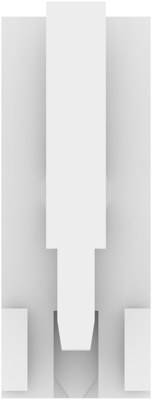

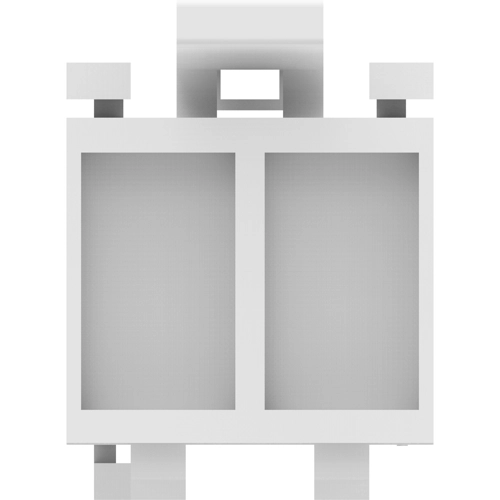

Socket housing, 2 pole, pitch 5 mm, straight, natural, 1241961-3
Order No.: 35P4219
EAN: 4099889933079
MPN:
1241961-3
Unit Price (€ / pc.)
0.3689 € *
Available in 5 Days: 19,200 pcs. - if ordered today
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3689 €
10 pcs.
0.3451 €
25 pcs.
0.3213 €
50 pcs.
0.2880 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1241961-3, AMP
Wire-to-Board, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Housing Material: PA 6.6
- Housing Color: natural
- Number of positions: 2
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 5 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Grid | 5 mm | |
| Contact type | socket | |
| Rated voltage | 150 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Colour | natural | |
| Connection | crimp connection | |
| Pin number | 2 pole | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
