1241961-1 | AMP

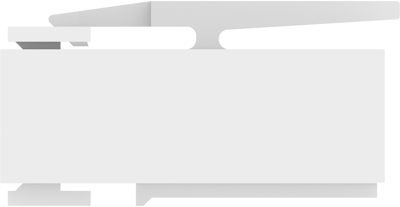

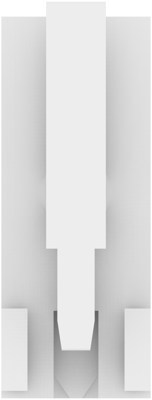

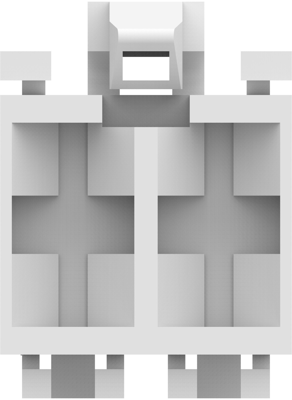

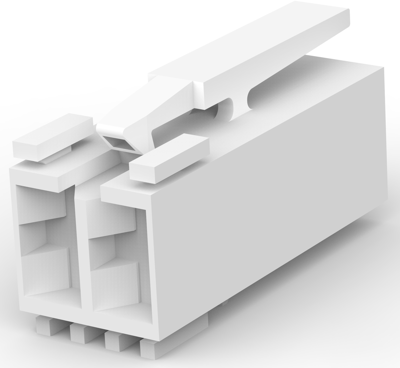

Socket housing, 2 pole, pitch 5 mm, straight, natural, 1241961-1
Order No.: 35P4218
EAN: 4099889933062
MPN:
1241961-1
Unit Price (€ / pc.)
0.2678 € *
Standard delivery time from the manufacturer is: 24 Weeks
PCB Connection System, 1241961-1, AMP
Wire-to-Board, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Housing Material: PA 6.6
- Housing Color: natural
- Number of positions: 2
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 5 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Rated voltage | 150 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 2 pole | |
| Additional parts | unequipped | |
| Colour | natural | |
| Version | socket housing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
