1241959-5 | AMP

Socket housing, 5 pole, pitch 5 mm, straight, natural, 1241959-5

Order No.: 35P4254
EAN: 4099889933277
MPN:
1241959-5
Series: RAST 5

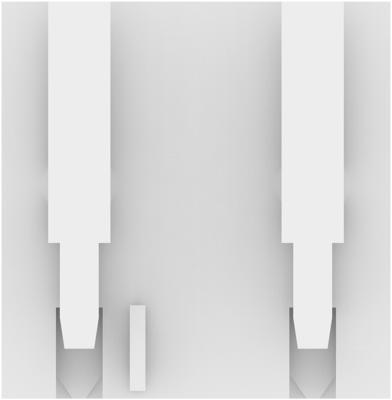

1241959-5 AMP PCB Connection Systems Image 1

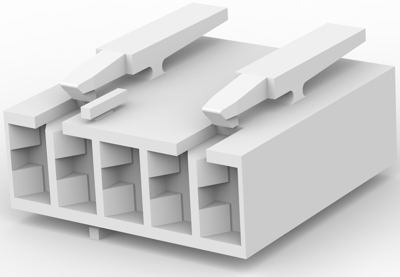

1241959-5 AMP PCB Connection Systems Image 2

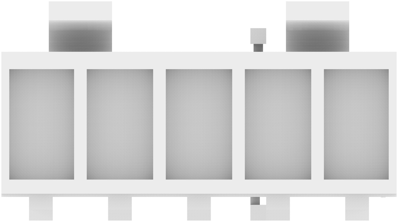

1241959-5 AMP PCB Connection Systems Image 3

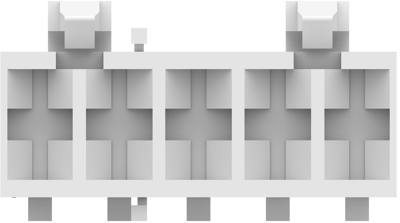

1241959-5 AMP PCB Connection Systems Image 4

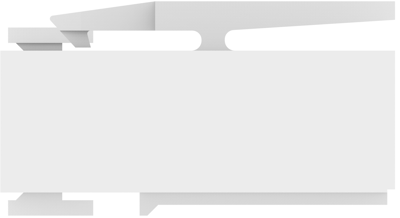

1241959-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.6664 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
833.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1250 pcs.
0.6664 €

PCB Connection System, 1241959-5, AMP

Wire-to-Wire, Wire & Cable, 5 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Housing Material: PA 6
  • Housing Color: natural
  • Number of positions: 5
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Colour natural
Type of locking Yes
Grid 5 mm
Pin number 5 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 150 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
