1241152-9 | AMP

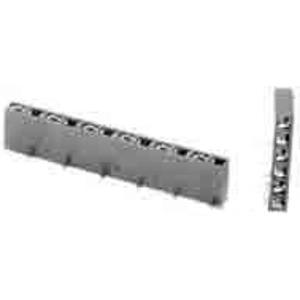

Socket header, 9 pole, pitch 2.54 mm, straight, black, 1241152-9
Order No.: 37P6010
EAN: 4099889958997
MPN:
1241152-9
Unit Price (€ / pc.)
3.2249 € *
Available: 0 pcs.
Leadtime: 31 Weeks **
PCB Connection System, 1241152-9, AMP
Board-to-Board, Printed Circuit Board, Vertical, 9 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: LCP (Liquid Crystal Polymer)
- Housing Color: black
- Orientation: straight
- Number of positions: 9
- Operating Temperature Range: -65 – 125 °C [-85 – 257 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | SMD | |
| Connection plating | vergoldet | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | vergoldet | |
| Rated voltage | 150 V | |
| Rated current | 3 A | |
| Orientation | gerade | |
| Pin number | 9-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
