1241152-8 | AMP

Socket header, 8 pole, pitch 2.54 mm, straight, black, 1241152-8

Order No.: 37P6009
EAN: 4099889958980
MPN:
1241152-8
Series: AMPMODU

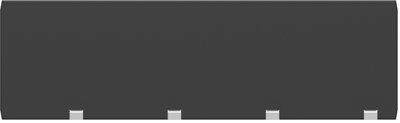

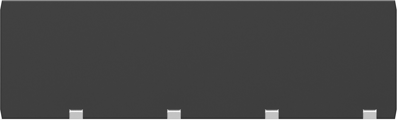

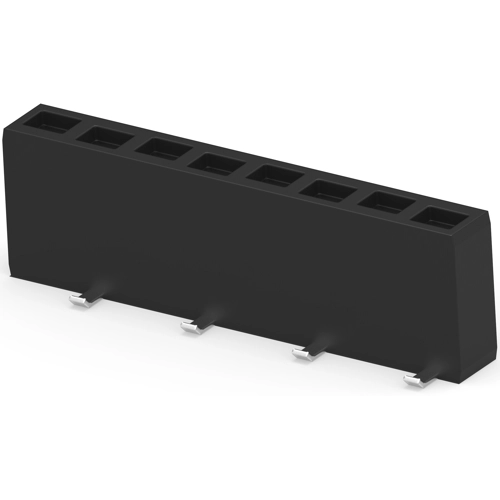

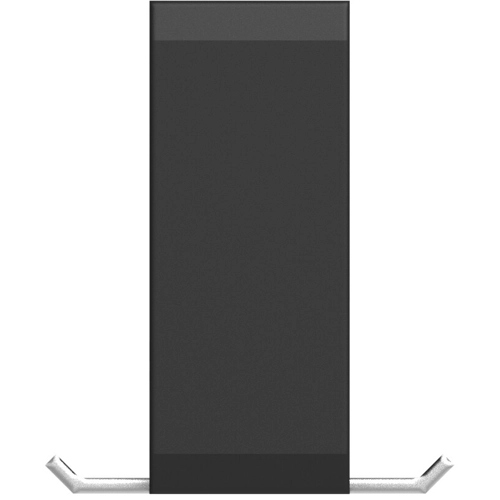

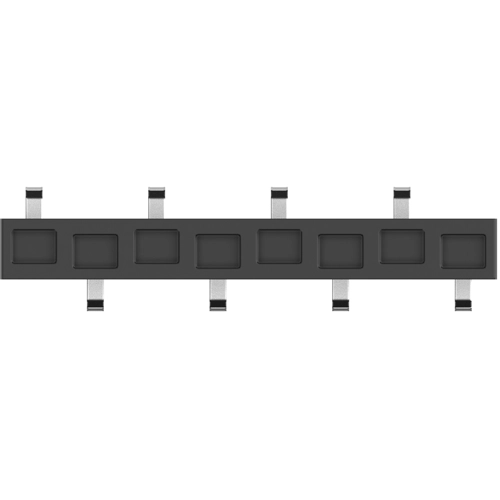

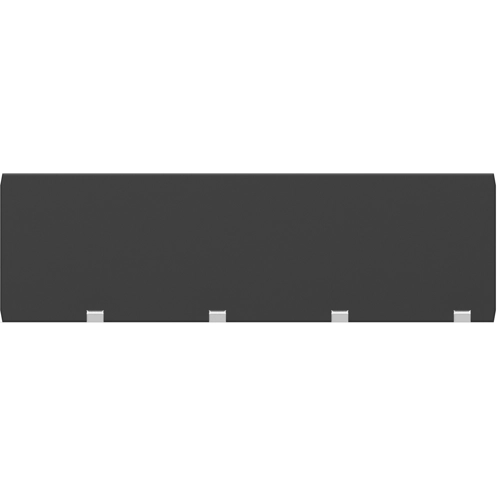

1241152-8 AMP PCB Connection Systems Image 1
1241152-8 AMP PCB Connection Systems Image 2
1241152-8 AMP PCB Connection Systems Image 3
1241152-8 AMP PCB Connection Systems Image 4
1241152-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.9036 € *
Standard delivery time from the manufacturer is: 31 Weeks
Total Price:
4,065.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1400 pcs.
2.9036 €

PCB Connection System, 1241152-8, AMP

Board-to-Board, Printed Circuit Board, Vertical, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: LCP (Liquid Crystal Polymer)
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -65 – 125 °C [-85 – 257 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 3 A
Grid 2.54 mm
Connection plating gold-plated
Pin number 8 pole
Version socket header
Additional parts equipped
Orientation straight
Connection SMD
Contact type socket
Rated voltage 150 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
