1241050-2 | AMP
Pin header, 4 pole, pitch 2.54 mm, straight, black, 1241050-2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.8683 € *
Available in 12 Days: 350 pcs. - if ordered today

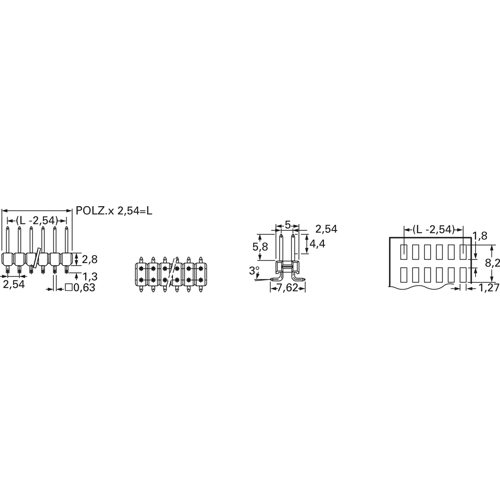

SMD pin headers, type TE Connectivity/AMP Modu ..-124../0-096.
With 2.54 mm grid, for surface mounting; Contacts: CuSn. Contact finish: mating side 0.8 µm Au over 1.27 µm Ni, solder side at least 2.5 µm tin over 1.27 µm Ni. Housing: socket header PCT glass fiber reinforced, black, pin header LCP, black. Useful life: 200 insertion/removal cycles. Insulation resistance: at least 5.0 Gohm. Contact resistance: max. 20 mohm. Dielectric strength: 250 VAC. Rated current: 2.0 A. Operating temperatures: –65 to +105 °C.
Technical attributes (type, number of poles, version): 0-1241050-2, 2 x 2-pole, dual-row
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 4 pole | |
| Grid | 2.54 mm | |
| Connection | SMD | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated current | 2 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Breakable | Yes | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
