1123829-1 | AMP

Pin header, 8 pole, pitch 10.16 mm, angled, black, 1123829-1

Order No.: 71P0331
EAN: 4099891716103
MPN:
1123829-1
Series: Dynamic 5000

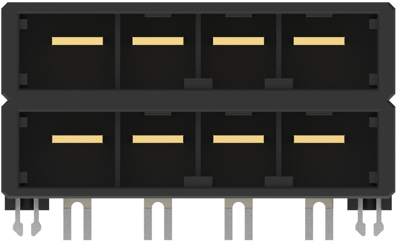

1123829-1 AMP PCB Connection Systems Image 1

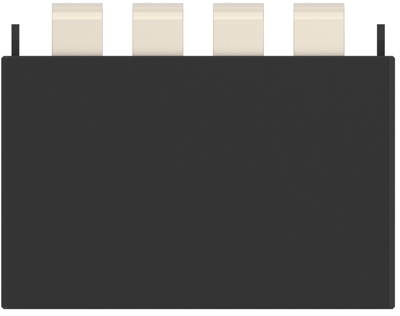

1123829-1 AMP PCB Connection Systems Image 2

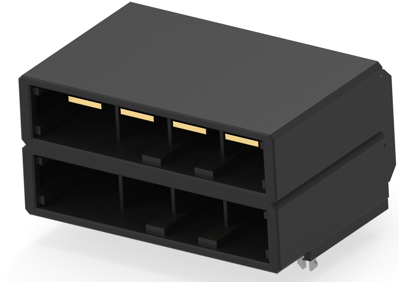

1123829-1 AMP PCB Connection Systems Image 3

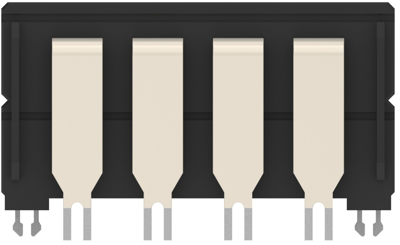

1123829-1 AMP PCB Connection Systems Image 4

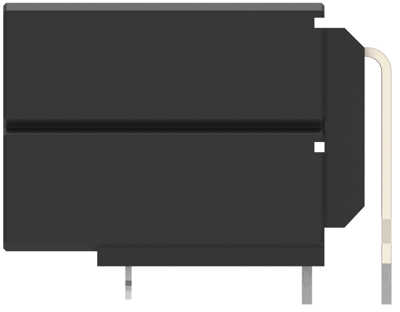

1123829-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
23.0622 € *
Available in 5 Days: 567 pcs. - if ordered today
Total Price:
23.06 € *
Price list
Quantity
Price per unit*
1 pcs.
23.0622 €
2 pcs.
21.5747 €
5 pcs.
20.2657 €
10 pcs.
18.8377 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Header, 1123829-1, AMP

PCB Mount header, Horizontal, Wire-to-Board, 8 Position, 10.16 mm Centerline, Fully shrouded, Gold, Through Hole-Solder.

Applications

  • Industrial Control
  • Production Equipment
  • Servo Drives
  • Power Distribution
  • Industrial Process Controls
  • Numeric Controllers
Technical specifications
Filter Property Value
Connection plating tin-plated
Grid 10.16 mm
Orientation angled
Connection solder connection
Contact type pin
Rated current 45 A
Additional parts equipped
Version pin header
Pin number 8 pole
Type of locking Yes
contact surface gold-plated
Number of rows 2
Colour black
Rated voltage 630 V
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
