104892-8 | AMP

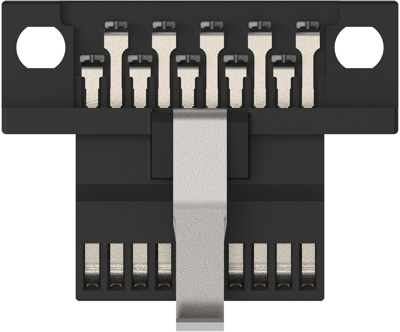

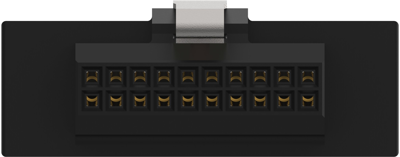

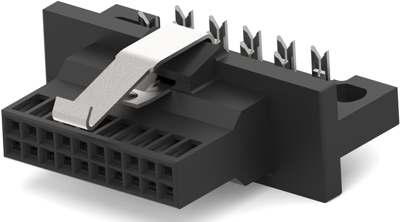

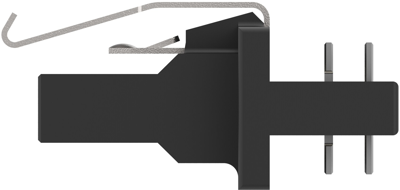

Socket header, 80 pole, pitch 1.27 mm, straight, black, 104892-8
Order No.: 37P5260
EAN: 4099889955392
MPN:
104892-8
Unit Price (€ / pc.)
27.7508 € *
Standard delivery time from the manufacturer is: 57 Weeks
PCB Connection System, 104892-8, AMP
Cable-to-Board, Wire & Cable, 80 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 80
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 1.27 mm
- Row-to-Row Spacing: 1.27 mm [0.05 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | gold-plated | |
| Pin number | 80 pole | |
| Type of locking | Yes | |
| Rated voltage | 30 V | |
| Connection plating | gold-plated | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 1.27 mm | |
| Number of rows | 2 | |
| Additional parts | equipped | |
| Connection | IDC connection | |
| Rated current | 500 mA | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | No |
| Substance description | Lead |
| SVHC free | No |
