104482-8 | AMP

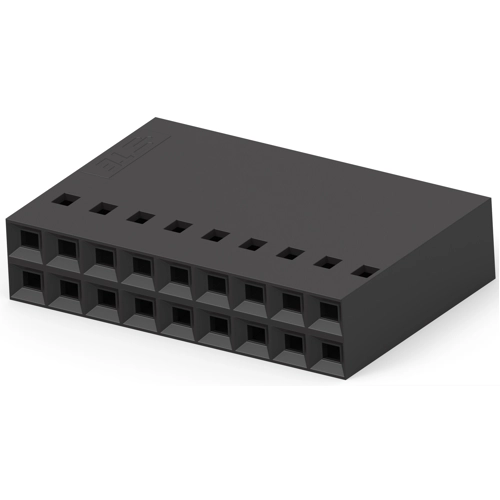

Socket housing, 18 pole, pitch 2.54 mm, straight, black, 104482-8

Order No.: 37P6345
EAN: 4099889961300
MPN:
104482-8
Series: AMPMODU
104482-8 AMP PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.19 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
2,975.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
1.19 €

PCB Connection System, 104482-8, AMP

Wire-to-Board, Wire & Cable, 18 Position

Technical Data

  • Contact Type: Female
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Number of positions: 18
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Colour black
Rated current 3 A
Grid 2.54 mm
Pin number 18 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 300 V
Number of rows 2
Logistics
Country of origin US
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
