104482-3 | AMP

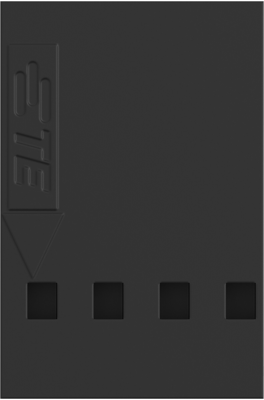

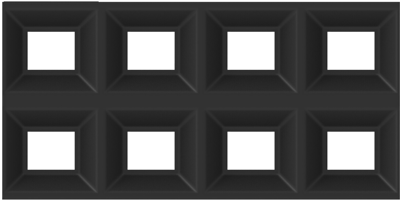

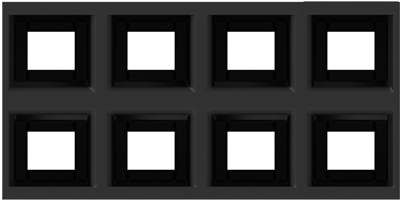

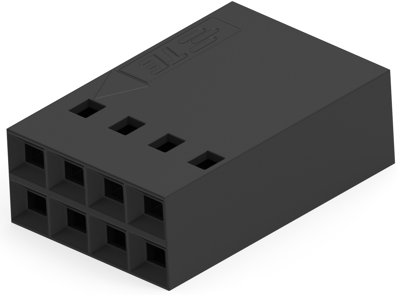

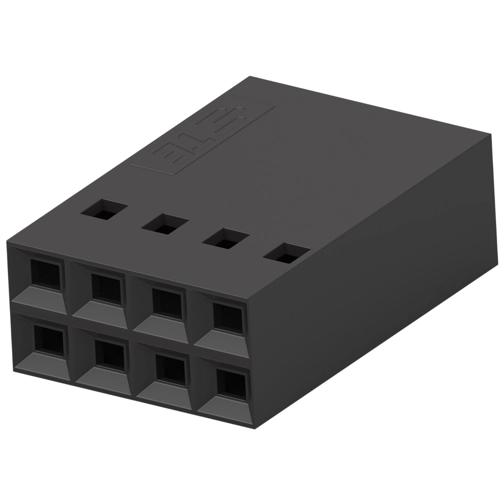

Socket housing, 8 pole, pitch 2.54 mm, straight, black, 104482-3
Unit Price (€ / pc.)
0.9520 € *
Standard delivery time from the manufacturer is: 65 Weeks
PCB Connection System, 104482-3, AMP
Wire-to-Board, Wire & Cable, 8 Position
Technical Data
- Contact Type: Female
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 8
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | unequipped | |
| Rated current | 3 A | |
| Version | socket housing | |
| Connection | crimp connection | |
| Number of rows | 2 | |
| Colour | black | |
| Grid | 2.54 mm | |
| Contact type | socket | |
| Pin number | 8 pole | |
| Rated voltage | 300 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
