104128-4 | AMP

Pin header, 20 pole, pitch 2.54 mm, straight, black, 104128-4

Order No.: 36P5311
EAN: 4099889942583
MPN:
104128-4
Series: AMP-LATCH

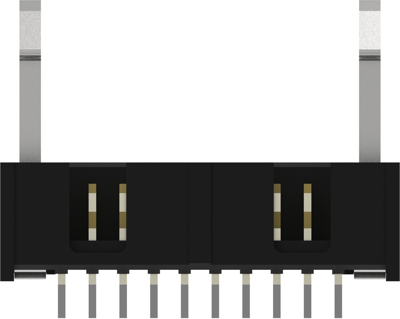

104128-4 AMP PCB Connection Systems Image 1

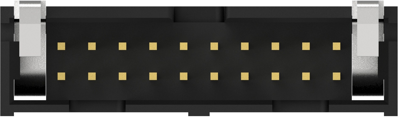

104128-4 AMP PCB Connection Systems Image 2

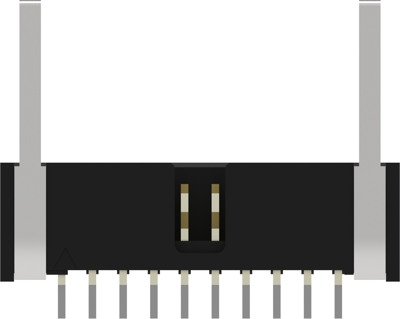

104128-4 AMP PCB Connection Systems Image 3

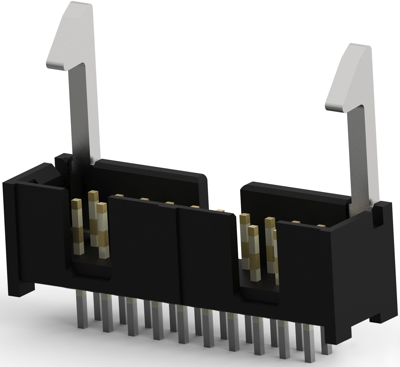

104128-4 AMP PCB Connection Systems Image 4

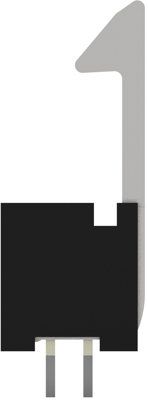

104128-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.3431 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
3,462.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
648 pcs.
5.3431 €

PCB Connection System, 104128-4, AMP

Board-to-Board, Printed Circuit Board, Vertical, 20 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Nylon - GF
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 20
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type pin
Connection plating tin-plated
contact surface gold-plated
Version pin header
Rated current 1 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour black
Pin number 20 pole
Connection PCB connection
Logistics
Property Value
Country of origin US
Customs tariff number 85366930
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform No
Substance description Lead
