103916-2 | AMP

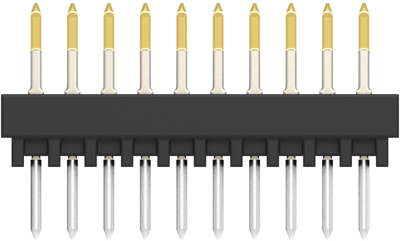

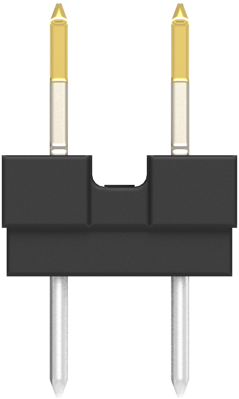

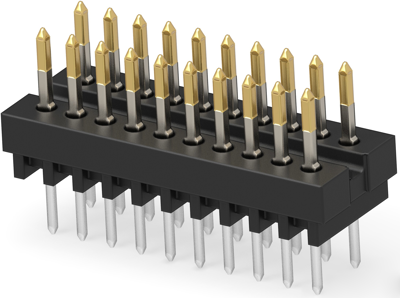

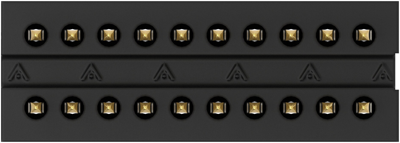

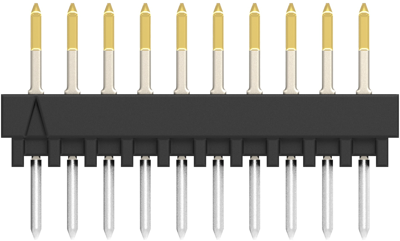

Pin header, 20 pole, pitch 1.27 mm, straight, black, 103916-2
Unit Price (€ / pc.)
2.2967 € *
Standard delivery time from the manufacturer is: 34 Weeks
PCB Connection System, 103916-2, AMP
20 SYSTEM 50 HDR DRST UNSHRD
Technical Data
- Contact Type: Male
- Housing Color: black
- Orientation: straight
- Number of positions: 20
- Centerline (Pitch): 1.27 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | gold-plated | |
| Pin number | 20 pole | |
| Type of locking | Yes | |
| Rated voltage | 30 V | |
| Orientation | straight | |
| Contact type | pin | |
| Grid | 1.27 mm | |
| Number of rows | 2 | |
| Additional parts | equipped | |
| Connection | solder pin | |
| Rated current | 3.6 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | No |
| Substance description | Lead |
| SVHC free | No |
