103688-1 | AMP

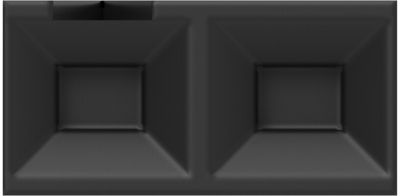

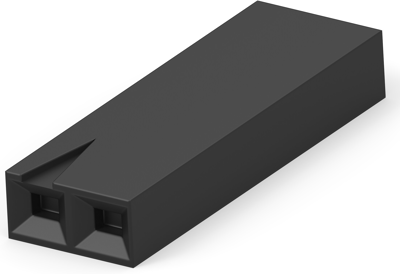

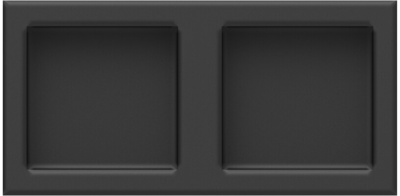

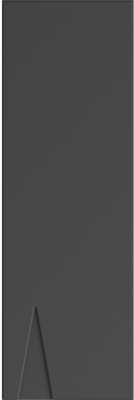

Socket housing, 2 pole, pitch 2.54 mm, straight, black, 103688-1
Unit Price (€ / pc.)
0.6069 € *
Standard delivery time from the manufacturer is: 23 Weeks
PCB Connection System, 103688-1, AMP
Wire-to-Board, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Flame-Retardant Thermoplastic
- Housing Color: black
- Number of positions: 2
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Colour | black | |
| Type of locking | Yes | |
| Rated current | 3 A | |
| Grid | 2.54 mm | |
| Pin number | 2 pole | |
| Version | socket housing | |
| Orientation | straight | |
| Connection | crimp/IDC connection | |
| Contact type | socket | |
| Rated voltage | 600 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
