103653-5 | AMP

Plug housing, 6 pole, pitch 2.54 mm, straight, black, 103653-5

Order No.: 71F5528
EAN: 4099891009762
MPN:
103653-5
0-0103653-5
Series: AMPMODU

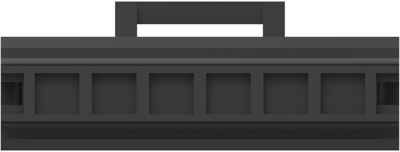

103653-5 AMP PCB Connection Systems Image 1

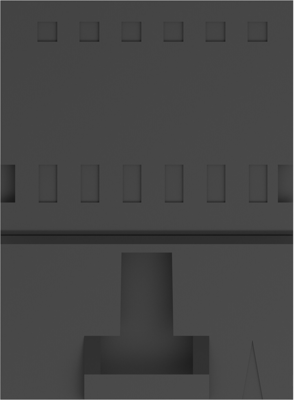

103653-5 AMP PCB Connection Systems Image 2

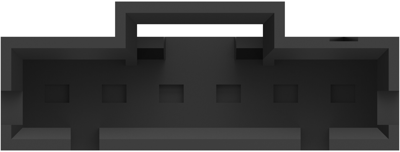

103653-5 AMP PCB Connection Systems Image 3

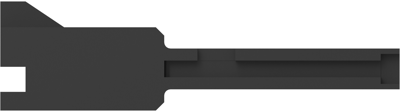

103653-5 AMP PCB Connection Systems Image 4

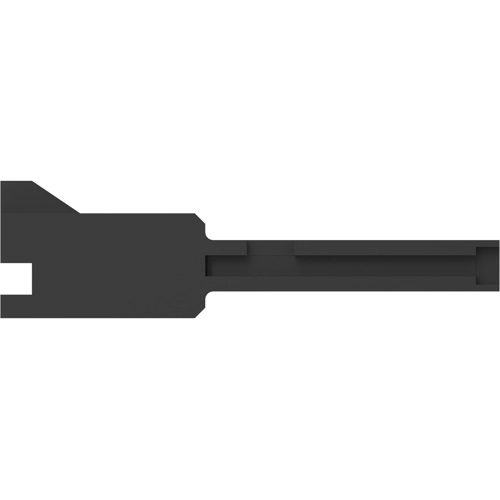

103653-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.5946 € *
Available: 86 pcs.
Available in 5 Days: 907 pcs. - if ordered today
Total Price:
1.59 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5946 €
10 pcs.
1.4518 €
50 pcs.
1.3209 €
100 pcs.
1.2019 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector housings, bare, type 0-0103653-.

With pin protection polarization and interlock; Housing: thermoplastic, black, according to UL 94 V-0

Type: 0–0103653–5, 6–pole

Technical specifications
Colour black
Type of locking Yes
Rated current 3 A
Grid 2.54 mm
Pin number 6 pole
Version plug housing
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
