103653-2 | AMP

Plug housing, 3 pole, pitch 2.54 mm, straight, black, 103653-2

Order No.: 71F5522
EAN: 4099891009731
MPN:
103653-2
0-0103653-2
Series: AMPMODU

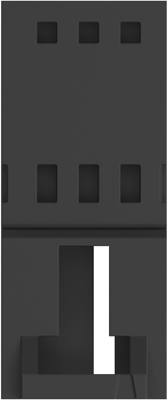

103653-2 AMP PCB Connection Systems Image 1

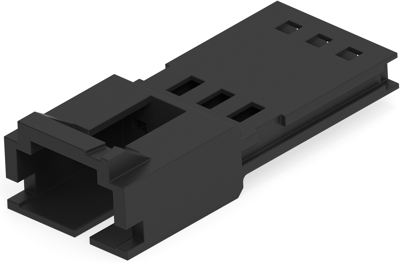

103653-2 AMP PCB Connection Systems Image 2

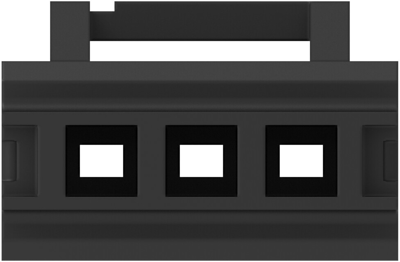

103653-2 AMP PCB Connection Systems Image 3

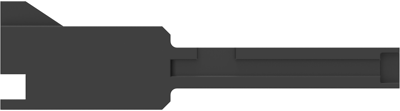

103653-2 AMP PCB Connection Systems Image 4

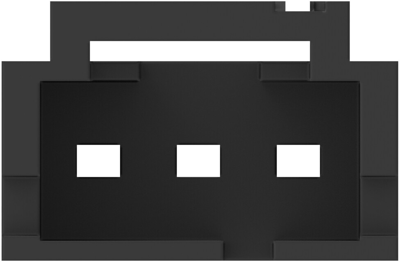

103653-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.6307 € *
Available: 193 pcs.
Available in 5 Days: 5,670 pcs. - if ordered today
Total Price:
0.63 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6307 €
10 pcs.
0.5831 €
50 pcs.
0.5236 €
100 pcs.
0.4760 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector housings, bare, type 0-0103653-.

With pin protection polarization and interlock; Housing: thermoplastic, black, according to UL 94 V-0

Type: 0–0103653–2, 3–pole

Technical specifications
Rated voltage 250 V
Grid 2.54 mm
Connection crimp connection
Orientation straight
Version plug housing
Colour black
Pin number 3 pole
Rated current 3 A
Contact type pin
Number of rows 1
Type of locking Yes
Logistics
Country of origin GB
Customs tariff number 85472000
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
