103311-3 | AMP

Pin header, 16 pole, pitch 2.54 mm, angled, black, 103311-3

Order No.: 36P5320
EAN: 4099889942675
MPN:
103311-3

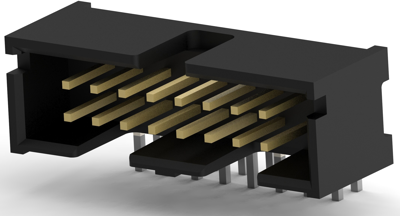

103311-3 AMP PCB Connection Systems Image 1

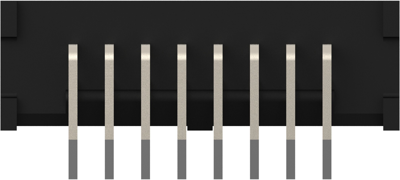

103311-3 AMP PCB Connection Systems Image 2

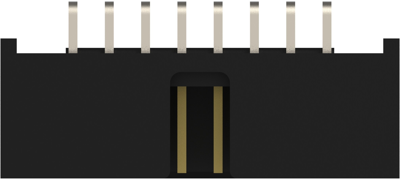

103311-3 AMP PCB Connection Systems Image 3

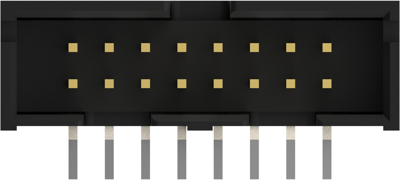

103311-3 AMP PCB Connection Systems Image 4

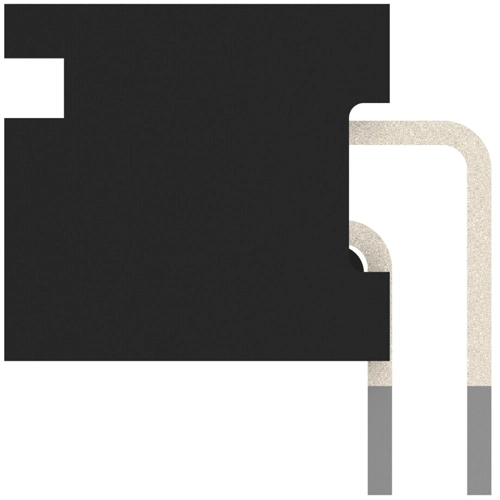

103311-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.0464 € *
Available: 0 pcs.
Available in 5 Days: 1,389 pcs.
Leadtime: 12 Weeks **
Total Price:
3.05 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0464 €
10 pcs.
2.8084 €
50 pcs.
2.5228 €
100 pcs.
2.2729 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 103311-3, AMP

Board-to-Board, Printed Circuit Board, Right Angle, 16 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: angled
  • Number of positions: 16
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Connection Leiterplattenanschluss
Connection plating verzinnt
Number of rows 2
Version Stiftleiste
Additional parts bestückt
Colour schwarz
Contact type Stift
contact surface vergoldet
Rated current 1 A
Orientation abgewinkelt
Pin number 16-polig
Grid 2.54 mm
Type of locking Ja
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
RoHS conform No
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
