102387-9 | AMP

Socket housing, 40 pole, pitch 2.54 mm, straight, black, 102387-9

Order No.: 37P6561
EAN: 4099889962758
MPN:
102387-9
Series: AMPMODU

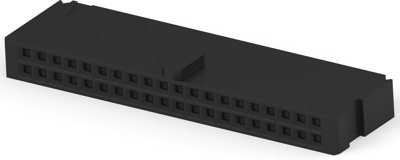

102387-9 AMP PCB Connection Systems Image 1

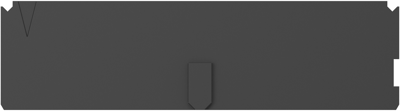

102387-9 AMP PCB Connection Systems Image 2

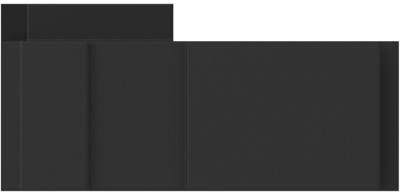

102387-9 AMP PCB Connection Systems Image 3

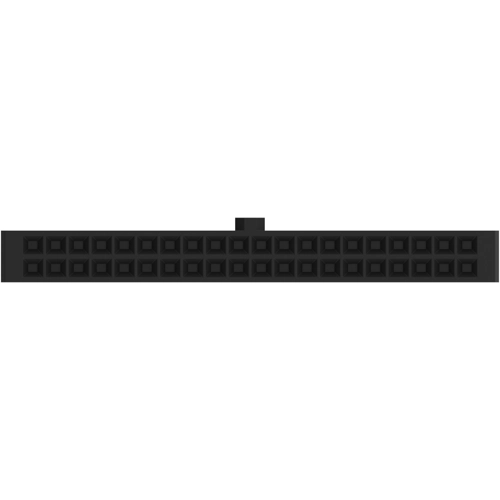

102387-9 AMP PCB Connection Systems Image 4
102387-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.3673 € *
Available in 5 Days: 406 pcs. - if ordered today
Total Price:
1,310.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
4.3673 €

PCB Connection System, 102387-9, AMP

Wire-to-Board, Wire & Cable, 40 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Beryllium Copper
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Number of positions: 40
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
Filter Property Value
Connection crimp connection
Rated voltage 250 V
Number of rows 2
Orientation straight
Rated current 3 A
Grid 2.54 mm
Pin number 40 pole
Contact type socket
Colour black
Version socket housing
Logistics
Property Value
Customs tariff number 85472000
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
