102387-4 | AMP

Socket housing, 20 pole, pitch 2.54 mm, straight, black, 102387-4

Order No.: 37P6539
EAN: 4099889962628
MPN:
102387-4
Series: AMPMODU

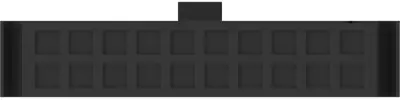

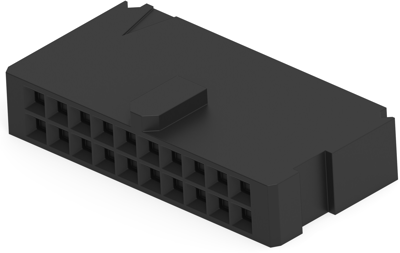

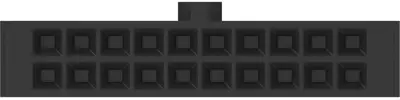

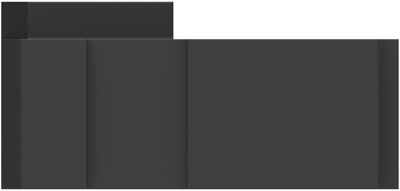

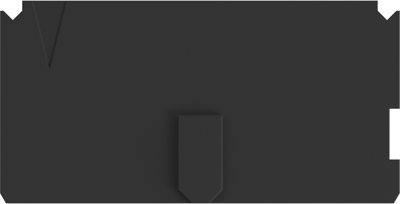

102387-4 AMP PCB Connection Systems Image 1
102387-4 AMP PCB Connection Systems Image 2
102387-4 AMP PCB Connection Systems Image 3
102387-4 AMP PCB Connection Systems Image 4
102387-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.2967 € *
Available: 4,721 pcs.
Available in 5 Days: 79,032 pcs. - if ordered today
Total Price:
2.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.2967 €

PCB Connection System, 102387-4, AMP

Wire-to-Board, Wire & Cable, 20 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Beryllium Copper
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 20
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
Filter Property Value
Rated voltage 250 V
Rated current 3 A
Grid 2.54 mm
Number of rows 2
Orientation straight
Version socket housing
Colour black
Connection crimp connection
Pin number 20 pole
Contact type socket
Logistics
Property Value
Country of origin CZ
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
