102387-3 | AMP

Socket housing, 16 pole, pitch 2.54 mm, straight, black, 102387-3

Order No.: 37P6527
EAN: 4099889962567
MPN:
102387-3
Series: AMPMODU

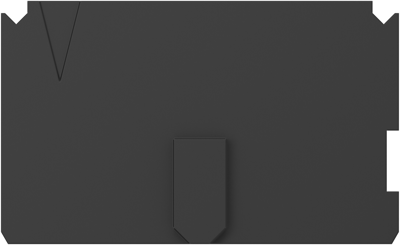

102387-3 AMP PCB Connection Systems Image 1

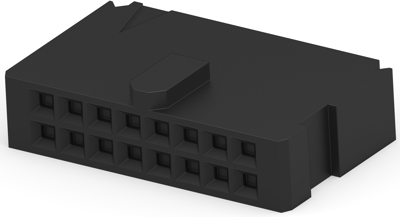

102387-3 AMP PCB Connection Systems Image 2

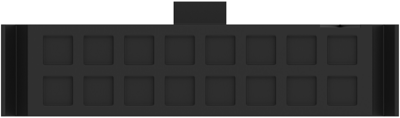

102387-3 AMP PCB Connection Systems Image 3

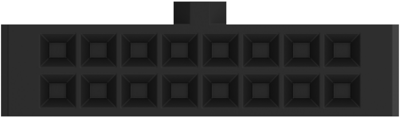

102387-3 AMP PCB Connection Systems Image 4

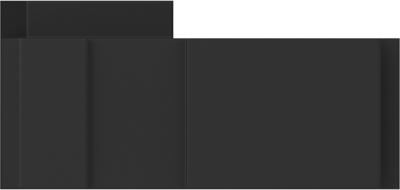

102387-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.3086 € *
Available: 19 pcs.
Total Price:
11.54 € *
Price list
Quantity
Price per unit*
5 pcs.
2.3086 €
10 pcs.
2.1420 €
25 pcs.
1.9873 €
50 pcs.
1.8088 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 102387-3, AMP

Wire-to-Board, Wire & Cable, 16 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Beryllium Copper
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Number of positions: 16
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Version socket housing
Rated current 3 A
Rated voltage 250 V
Orientation straight
Number of rows 2
Colour black
Pin number 16 pole
Connection crimp connection
Logistics
Property Value
Country of origin CZ
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
