102387-1 | AMP

Socket housing, 10 pole, pitch 2.54 mm, straight, black, 102387-1

Order No.: 37P6509
EAN: 4099889962451
MPN:
102387-1
Series: AMPMODU

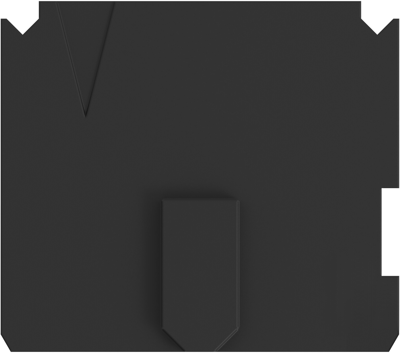

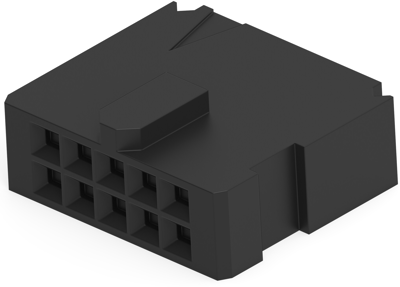

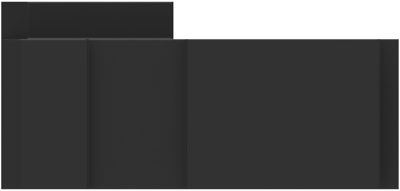

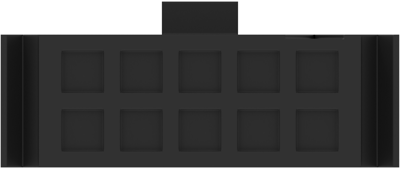

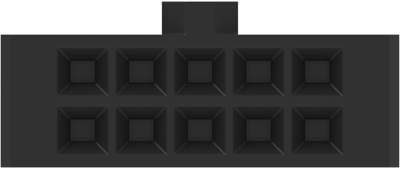

102387-1 AMP PCB Connection Systems Image 1
102387-1 AMP PCB Connection Systems Image 2
102387-1 AMP PCB Connection Systems Image 3
102387-1 AMP PCB Connection Systems Image 4
102387-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8088 € *
Available: 336 pcs.
Next delivery: 150 pcs. on 2026-02-17
Available in 5 Days: 12,807 pcs. - if ordered today
Total Price:
9.04 € *
Price list
Quantity
Price per unit*
5 pcs.
1.8088 €
10 pcs.
1.6779 €
25 pcs.
1.5589 €
50 pcs.
1.4161 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 102387-1, AMP

Wire-to-Board, Wire & Cable, 10 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Beryllium Copper
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 10
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Version socket housing
Rated current 3 A
Rated voltage 250 V
Orientation straight
Number of rows 2
Colour black
Pin number 10 pole
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
