102241-3 | AMP

Socket housing, 5 pole, pitch 2.54 mm, straight, black, 102241-3

Order No.: 37P6495
EAN: 4099889962352
MPN:
102241-3
Series: AMPMODU

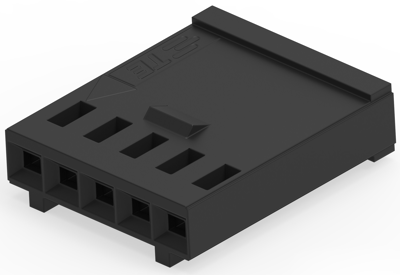

102241-3 AMP PCB Connection Systems Image 1

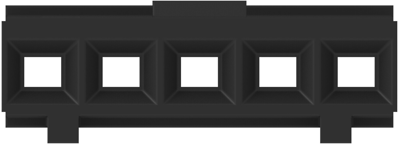

102241-3 AMP PCB Connection Systems Image 2

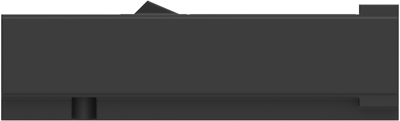

102241-3 AMP PCB Connection Systems Image 3

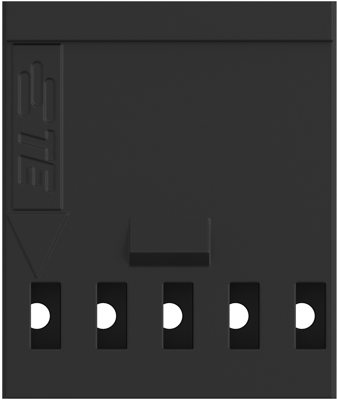

102241-3 AMP PCB Connection Systems Image 4
102241-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9163 € *
Standard delivery time from the manufacturer is: 65 Weeks
Total Price:
0.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.9163 €

PCB Connection System, 102241-3, AMP

Wire-to-Board, Wire & Cable, 5 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Beryllium Copper
  • Housing Material: Nylon - GF
  • Housing Color: black
  • Number of positions: 5
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Contact Layout: Inline
Technical specifications
Colour black
Type of locking Yes
Rated current 3 A
Grid 2.54 mm
Pin number 5 pole
Version socket housing
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin CZ
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
