102241-2 | AMP

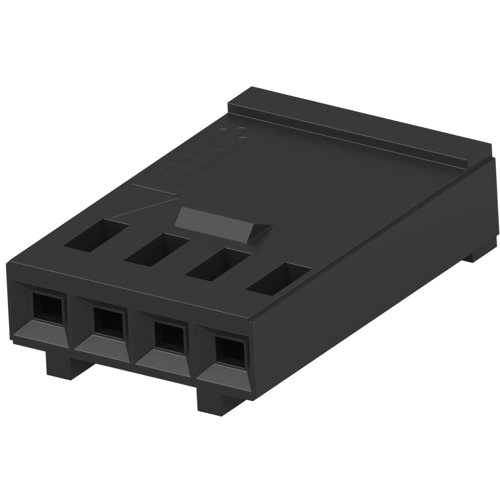

Socket housing, 4 pole, pitch 2.54 mm, straight, black, 102241-2

Order No.: 37P6492
EAN: 4099889962321
MPN:
102241-2
Series: AMPMODU

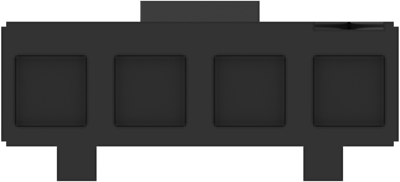

102241-2 AMP PCB Connection Systems Image 1

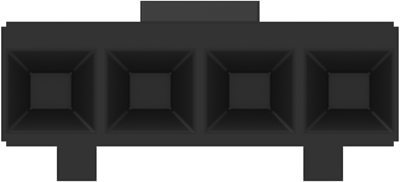

102241-2 AMP PCB Connection Systems Image 2

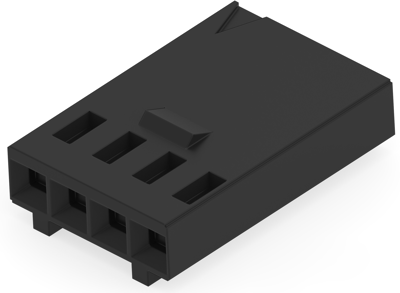

102241-2 AMP PCB Connection Systems Image 3

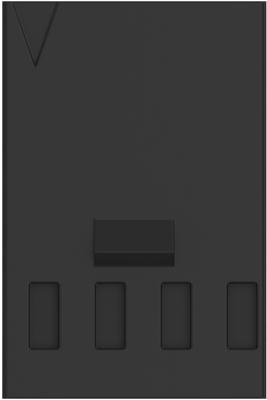

102241-2 AMP PCB Connection Systems Image 4

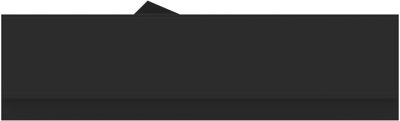

102241-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 65 Weeks
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7735 €
10 pcs.
0.6902 €
50 pcs.
0.6188 €
100 pcs.
0.5474 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 102241-2, AMP

Wire-to-Board, Wire & Cable, 4 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Beryllium Copper
  • Housing Material: Nylon - GF
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 4
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Contact Layout: Inline
Technical specifications
Type of locking Yes
Orientation straight
Pin number 4 pole
Rated voltage 250 V
Connection crimp connection
Colour black
Number of rows 1
Grid 2.54 mm
Rated current 3 A
Contact type socket
Version socket housing
Logistics
Customs tariff number 85472000
Country of origin GB
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
