102153-4 | AMP

Pin header, 20 pole, pitch 2.54 mm, straight, black, 102153-4

Order No.: 36P5736
EAN: 4099889945690
MPN:
102153-4
Series: AMP-LATCH

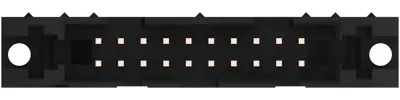

102153-4 AMP PCB Connection Systems Image 1

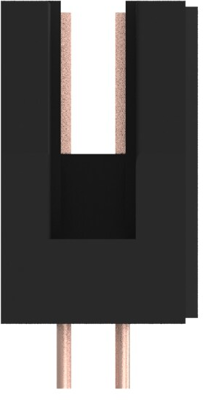

102153-4 AMP PCB Connection Systems Image 2

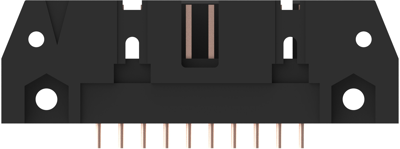

102153-4 AMP PCB Connection Systems Image 3

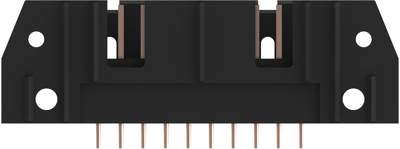

102153-4 AMP PCB Connection Systems Image 4

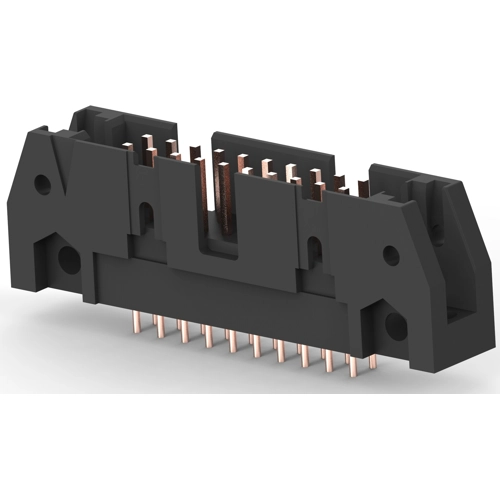

102153-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.0702 € *
Available in 5 Days: 6,148 pcs. - if ordered today
Total Price:
3.07 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0702 €
10 pcs.
2.8322 €
50 pcs.
2.5466 €
100 pcs.
2.2967 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 102153-4, AMP

Board-to-Board, Printed Circuit Board, Vertical, 20 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass, Phosphor Bronze
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 20
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 1 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 20 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform No
