102153-1 | AMP

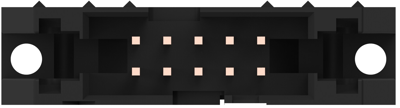

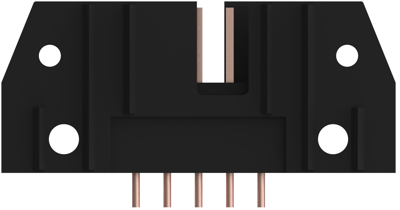

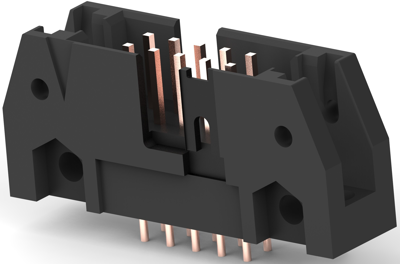

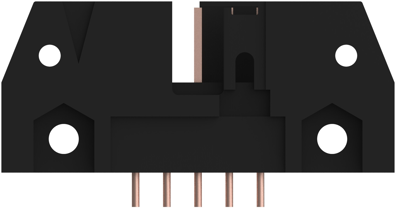

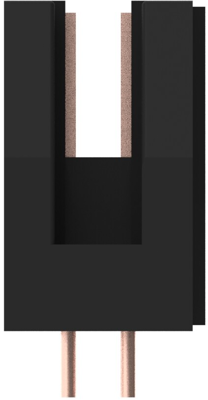

Pin header, 10 pole, pitch 2.54 mm, straight, black, 102153-1
Unit Price (€ / pc.)
1.4042 € *
Available in 5 Days: 1,366 pcs. - if ordered today
Total Price:
7.02 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4042 €
10 pcs.
1.2971 €
25 pcs.
1.2138 €
50 pcs.
1.0948 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 102153-1, AMP
Board-to-Board, Printed Circuit Board, Vertical, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass, Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 10
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| contact surface | gold-plated | |
| Version | pin header | |
| Rated current | 1 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black | |
| Pin number | 10 pole | |
| Connection | PCB connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | No |
| Substance description | Lead |
