100656-1 | AMP

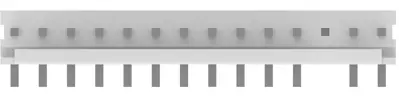

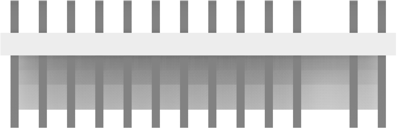

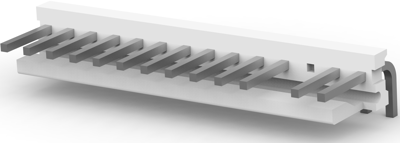

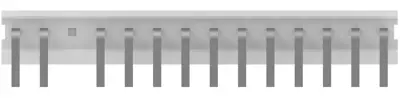

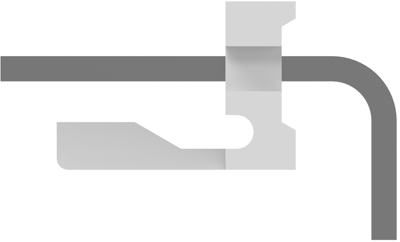

Pin header, 14 pole, pitch 3.96 mm, angled, natural, 100656-1
Unit Price (€ / pc.)
1.8088 € *
Available in 5 Days: 964 pcs. - if ordered today
Total Price:
271.32 € *
Price list
Quantity
Price per unit*
150 pcs.
1.8088 €
250 pcs.
1.6898 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 100656-1, AMP
Header assembly polarised, MTA-156, 14 position.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Connection | solder connection | |
| Colour | natural | |
| Additional parts | equipped | |
| Pin number | 14 pole | |
| Contact type | pin | |
| Orientation | angled | |
| Rated voltage | 600 V | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 7 A | |
| Number of rows | 1 | |
| Grid | 3.96 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | NL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
