1-917807-2 | AMP

Socket header, 4 pole, pitch 10.16 mm, straight, black, 1-917807-2

Order No.: 38P7407
EAN: 4099889976328
MPN:
1-917807-2
Series: DYNAMIC

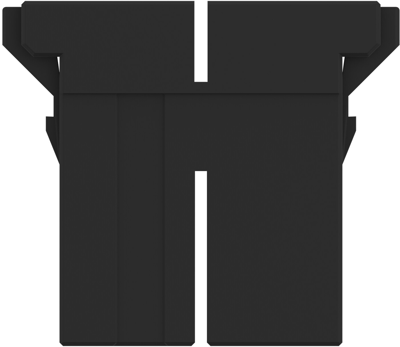

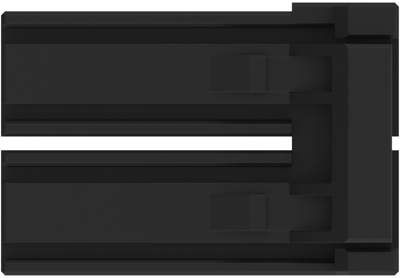

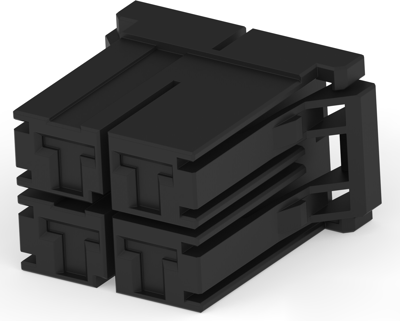

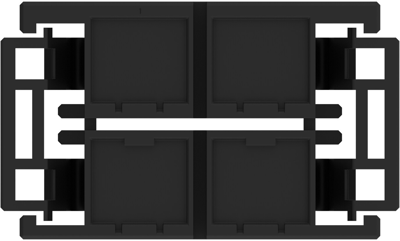

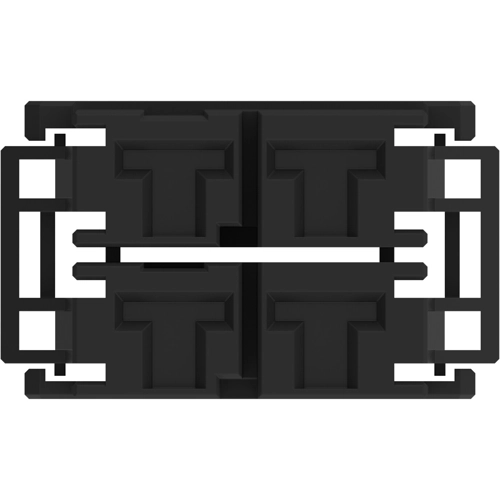

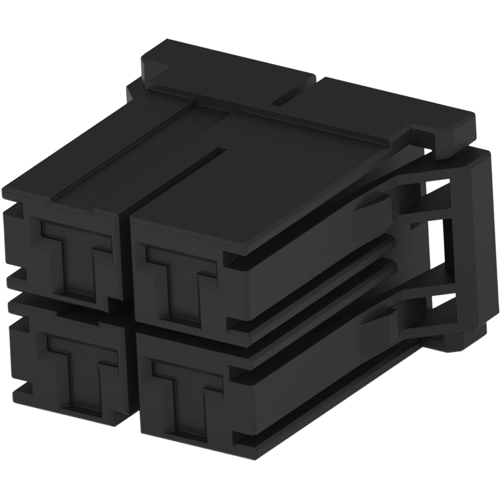

1-917807-2 AMP PCB Connection Systems Image 1
1-917807-2 AMP PCB Connection Systems Image 2
1-917807-2 AMP PCB Connection Systems Image 3
1-917807-2 AMP PCB Connection Systems Image 4
1-917807-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.2134 € *
Available in 5 Days: 1,850 pcs. - if ordered today
Total Price:
11.07 € *
Price list
Quantity
Price per unit*
5 pcs.
2.2134 €
10 pcs.
2.0468 €
25 pcs.
1.9040 €
50 pcs.
1.7255 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-917807-2, AMP

Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 10.16 mm
  • Row-to-Row Spacing: 10.16 mm [0.399 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Rated current 30 A
Version socket header
Orientation straight
Grid 10.16 mm
Number of rows 2
Contact type socket
Colour black
Pin number 4 pole
Connection crimp connection
Rated voltage 150 V
Logistics
Property Value
Country of origin US
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
