1-917659-8 | AMP

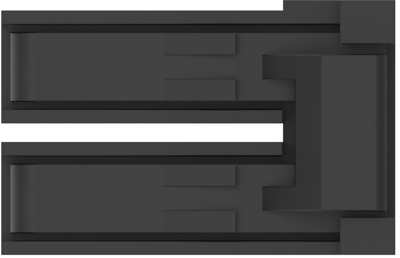

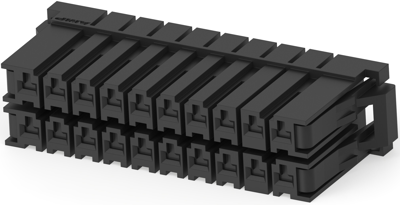

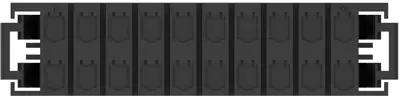

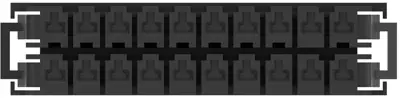

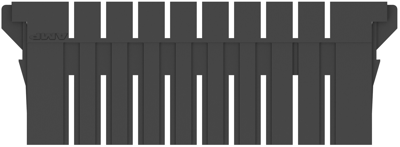

Socket header, 20 pole, pitch 5.08 mm, straight, black, 1-917659-8
Unit Price (€ / pc.)
5.3550 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
5.36 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3550 €
10 pcs.
4.9742 €
25 pcs.
4.6410 €
50 pcs.
4.2245 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-917659-8, AMP
Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 20 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 20
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.08 mm
- Row-to-Row Spacing: 7.62 mm [0.299 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 150 V | |
| Orientation | straight | |
| Pin number | 20 pole | |
| Version | socket header | |
| Colour | black | |
| Grid | 5.08 mm | |
| Contact type | socket | |
| Number of rows | 2 | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
