1-917541-2 | AMP

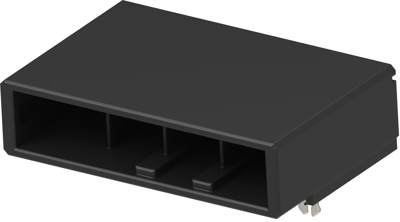

Pin header, 4 pole, pitch 10.16 mm, angled, black, 1-917541-2
Unit Price (€ / pc.)
12.1499 € *
Available: 0 pcs.
Available in 5 Days: 1,116 pcs.
Leadtime: 1 Week **
Total Price:
12.15 € *
Price list
Quantity
Price per unit*
10 pcs.
12.1499 €
40 pcs.
11.4359 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-917541-2, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 4 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Orientation: angled
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 30 A
- Centerline (Pitch): 10.16 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated voltage | 150 V | |
| Rated current | 30 A | |
| Orientation | angled | |
| Pin number | 4 pole | |
| Grid | 10.16 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
