1-917337-3 | AMP

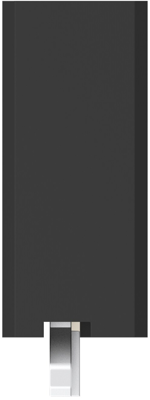

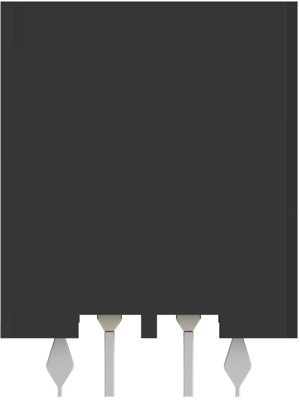

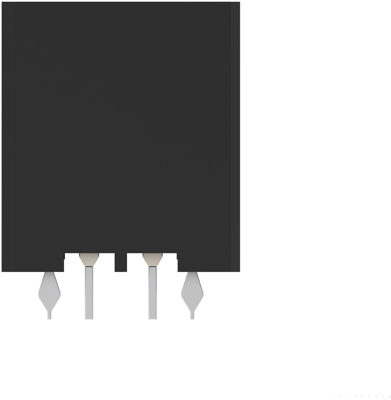

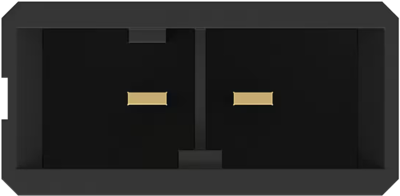

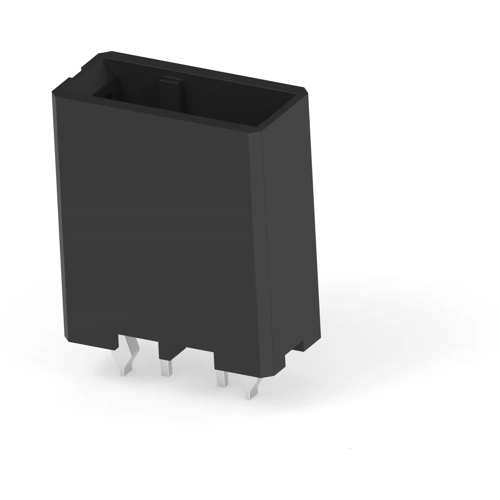

Pin header, 2 pole, pitch 5.08 mm, straight, black, 1-917337-3
Order No.: 59F370
MPN:
1-917337-3
Unit Price (€ / pc.)
3.4272 € *
Available in 5 Days: 3,198 pcs. - if ordered today
Total Price:
3.43 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4272 €
10 pcs.
3.1892 €
25 pcs.
2.9750 €
50 pcs.
2.7013 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, 1-917337-3, AMP
PCB mount header, vertical, Wire-to-Board, 2 Positions, 5.08 mm centerline, Fully Shrouded, Gold (Au).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Pin number | 2 pole | |
| Colour | black | |
| Contact type | pin | |
| Rated current | 15 A | |
| Version | pin header | |
| Connection | solder connection | |
| Number of rows | 1 | |
| Rated voltage | 600 V | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
